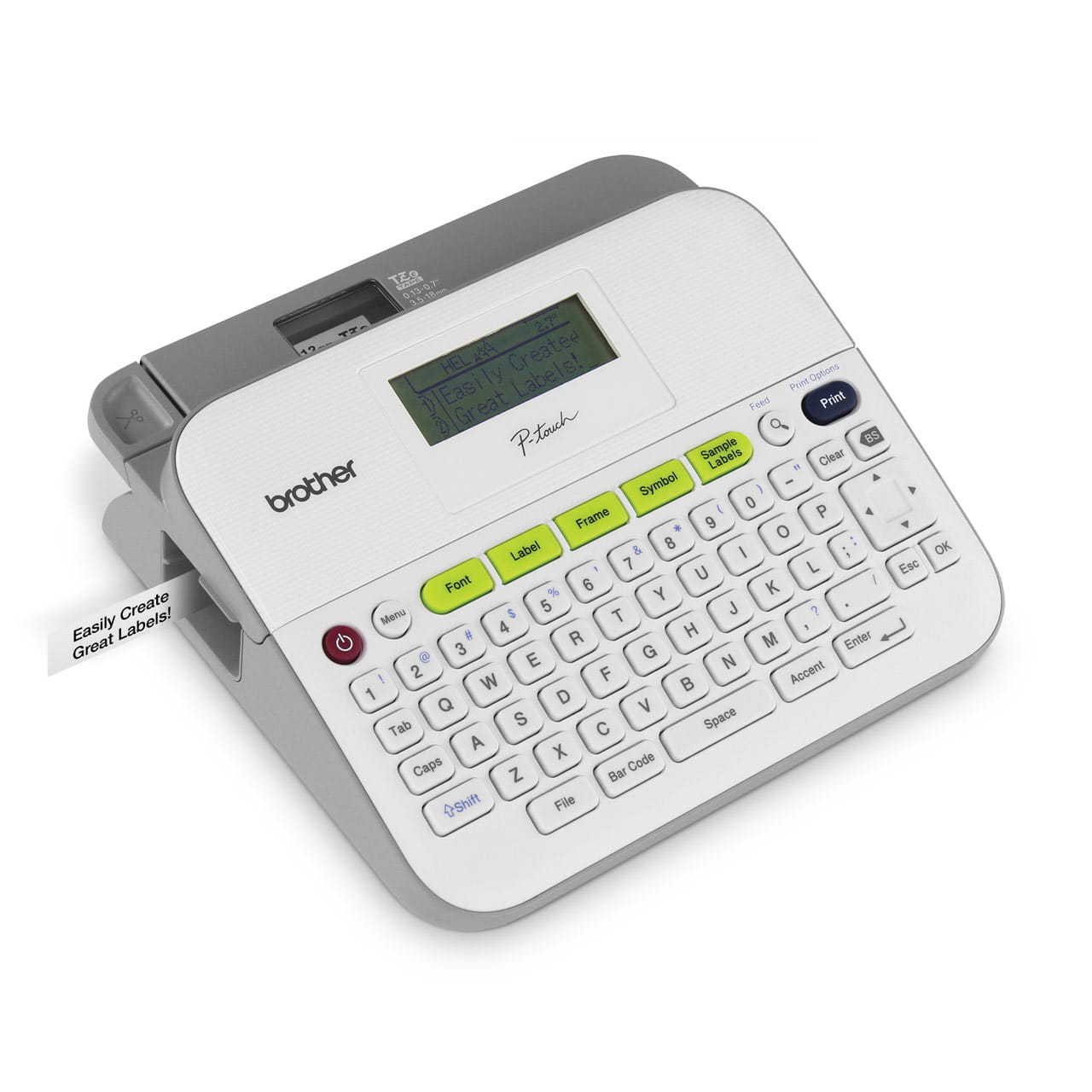

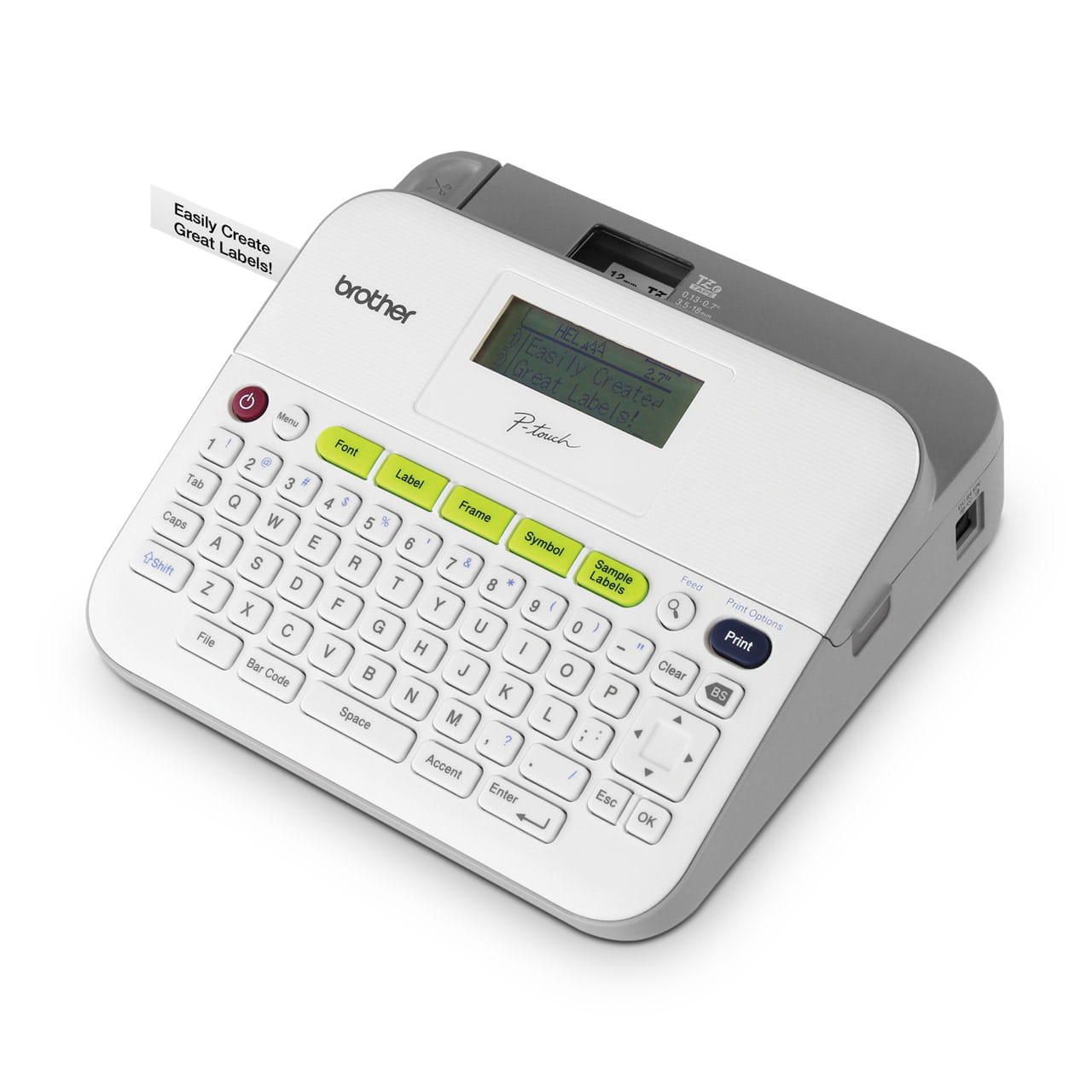

Desktop P-Touch Label Maker
- Print up to 18mm TZe laminated tapes width
- QWERTY Keyboard
- Manual cut function
- Editable label templates
- Print labels up to 5 lines
- 99 frames, 14 font styles, 617 symbols, 50 memories
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
16 characters x 1 guidance and 2 lines text (128 dots x 48 dots)
Media Type
TZe tape
Available Tape Widths
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm
Product Dimensions (Width X Depth X Height)
189 mm × 70.5 mm × 177.5 mm
Weight
0.73 kg
Print Speed
20 mm/sec
Warranty
1 Year Carry in Warranty
Resolution
180 dpi
No. Of Printable Lines
18 mm tape: 1 - 5 lines;
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines;
3.5 mm tape: 1 line
Number of Characters
825
Number of Symbols
617
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
Yes
Media
Maximum Tape Width
Up to 18 mm
Functions
Cutter
Manual
Multi Block Printing
No
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
Memory Buffer Size
Maximum 1,100 characters
Power
Power Source
6 AA alkaline batteries (LR6), 6 AA Ni-MH batteries (HR6), or AC adapter (AD-E001)
Auto Power-Off
Battery: 5 min
