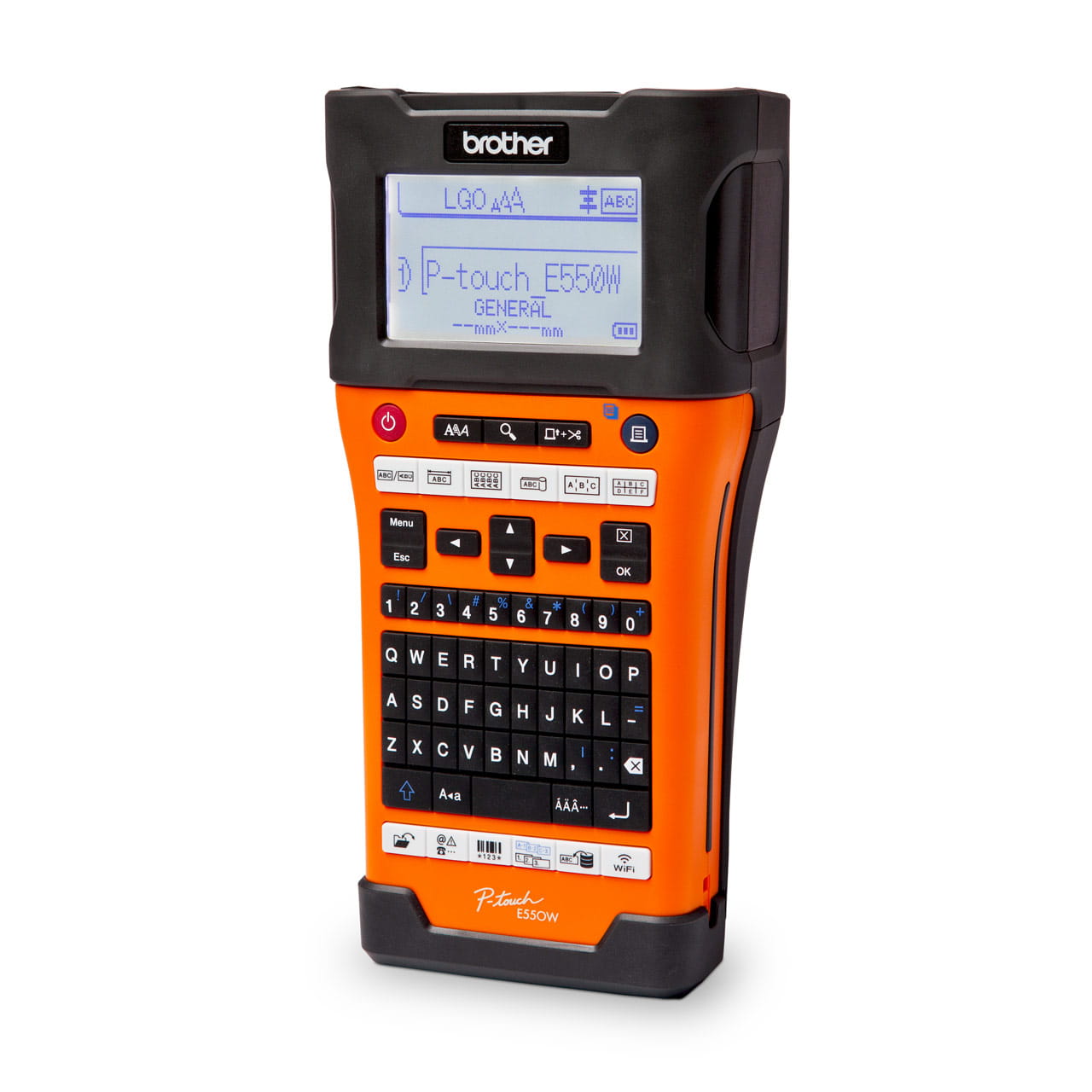

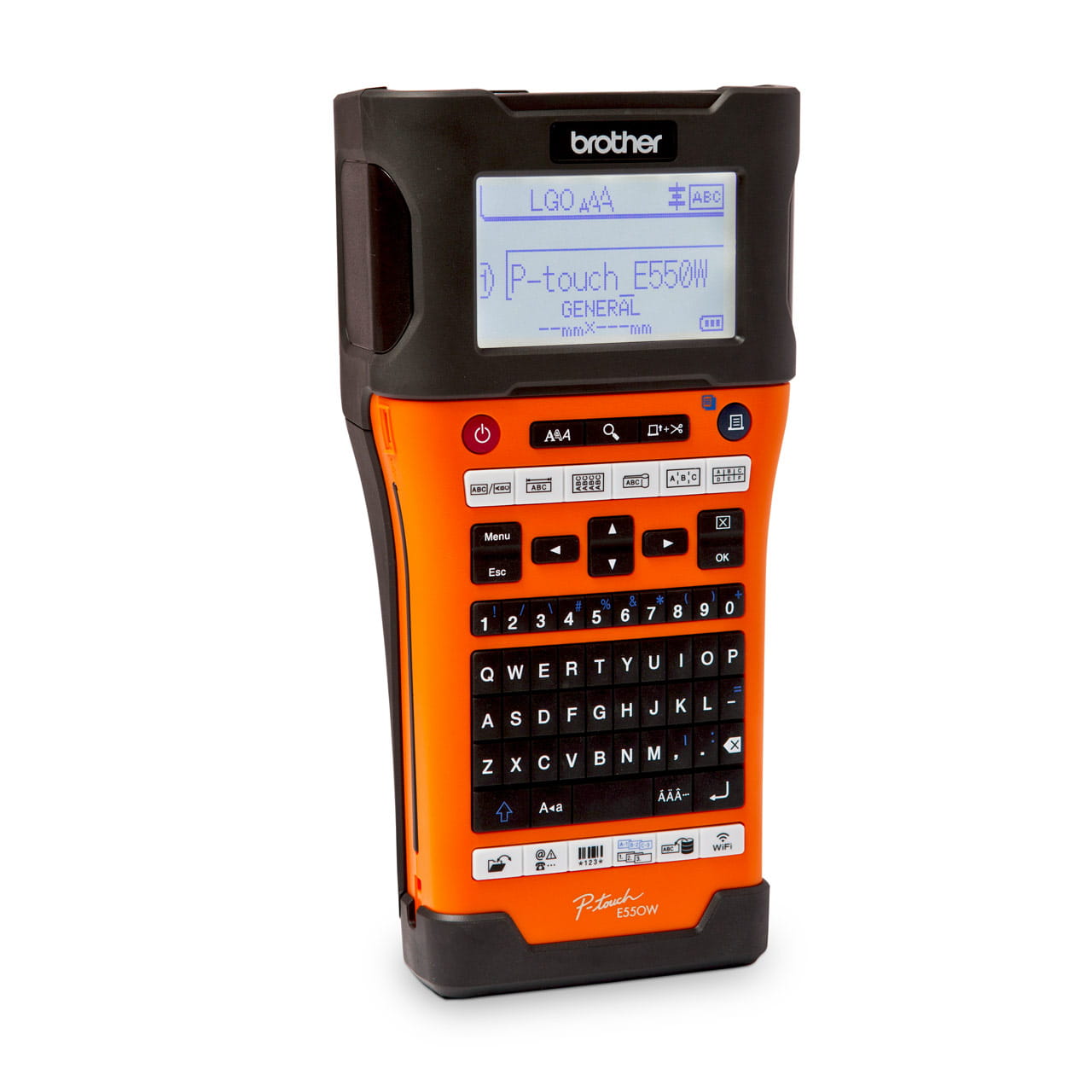

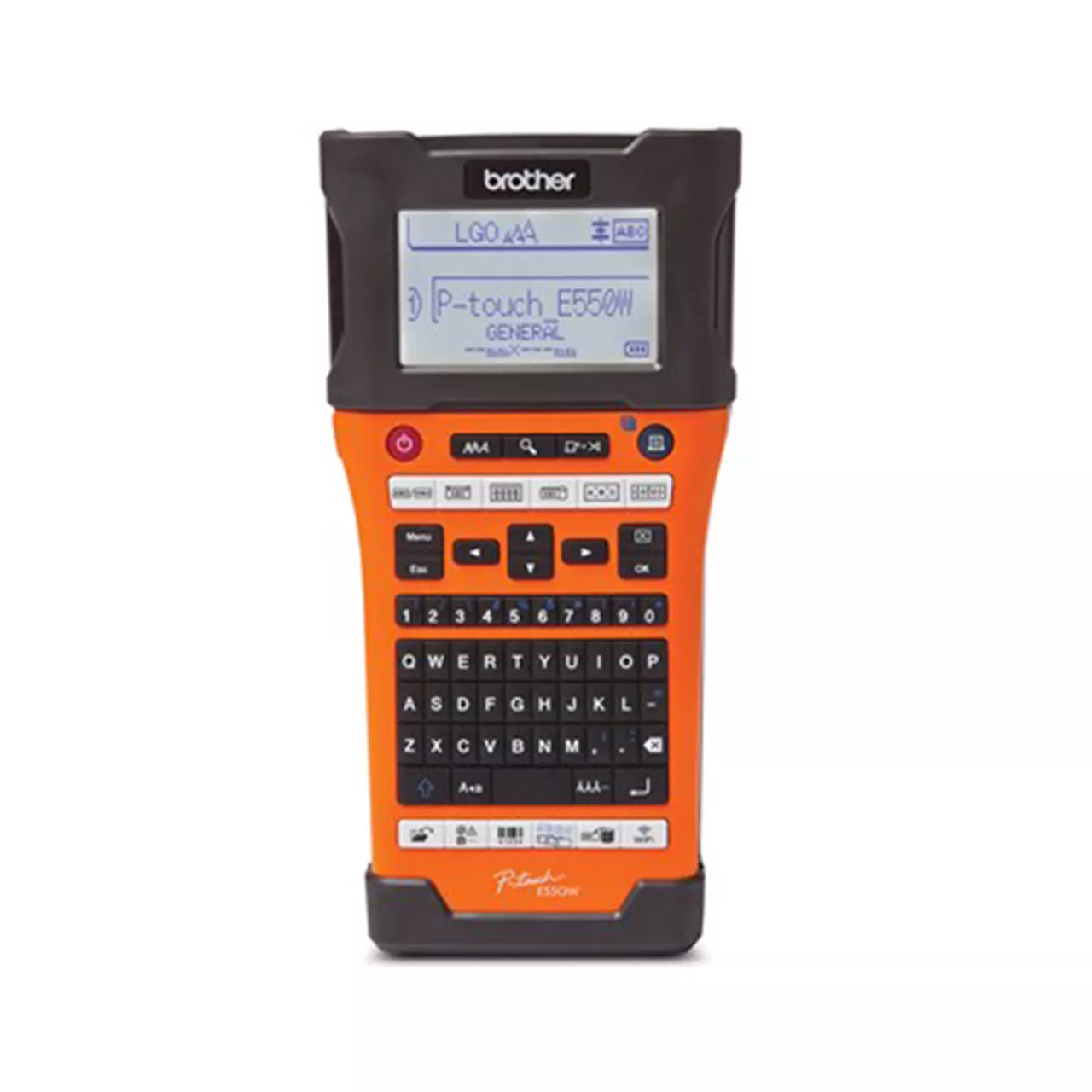

Wireless label printer for electrical industry
LKR 438
- Print up to 24mm TZe laminated tapes width
- QWERTY Keyboard, USB and WiFi connection
- Auto and Half cut function
- Dedicated function keys for electrical and datacom
- Comes with hard carrying case
- Rechargeable Li-ion battery included
Information
Overview
Specifications
Basic Specs
Keyboard
QWERTY
Display Type
15 characters x 2 lines and guidance area
(128 dots x 64 dots)
Media Type
TZe tape, HSe tape
Available Tape Widths
3.5 mm, 6 mm, 9 mm, 12 mm, 18 mm, 24 mm
Product Dimensions (Width X Depth X Height)
125.8 mm × 94.1 mm × 249.9 mm
Weight
0.92 kg
Print Speed
30 mm/sec
Warranty
1 Year Carry in Warranty
Resolution
180 dpi
No. Of Printable Lines
24 mm tape: 1 - 7 lines;
18 mm tape: 1 - 5 lines;
12 mm tape: 1 - 3 lines;
9 mm tape: 1 - 2 lines;
6 mm tape: 1 - 2 lines;
3.5 mm tape: 1 line
Number of Characters
591
Number of Symbols
384
Barcode
1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
Numbering
Yes
Connectivity
Connectivity
USB, Wireless LAN
Media
Maximum Tape Width
Up to 24 mm
Maximum Roll Width
3.5mm up to 36mm
Functions
Cutter
Auto (half and full)
Multi Block Printing
Yes
Copy Printing
Yes
Mirror Printing
Yes
Preview
Yes
Memory
File Storage
Maximum 99 files (local)
Maximum 99 templates, databases, and images each (total of 6MB)
Memory Buffer Size
Maximum 18,297 characters
Power
Power Source
6 AA alkaline batteries (LR6), 6 AA Ni-MH
rechargeable batteries (HR6), Li-ion Battery (BA-E001), or AC
adapter (AD-E001)
Auto Power-Off
6 AA alkaline batteries (LR6)/6 AA Ni-MH rechargeable
batteries (HR6): 20 min;
Li-ion battery (BA-E001): 30 min;
AC adapter (AD-E001): 60 min
