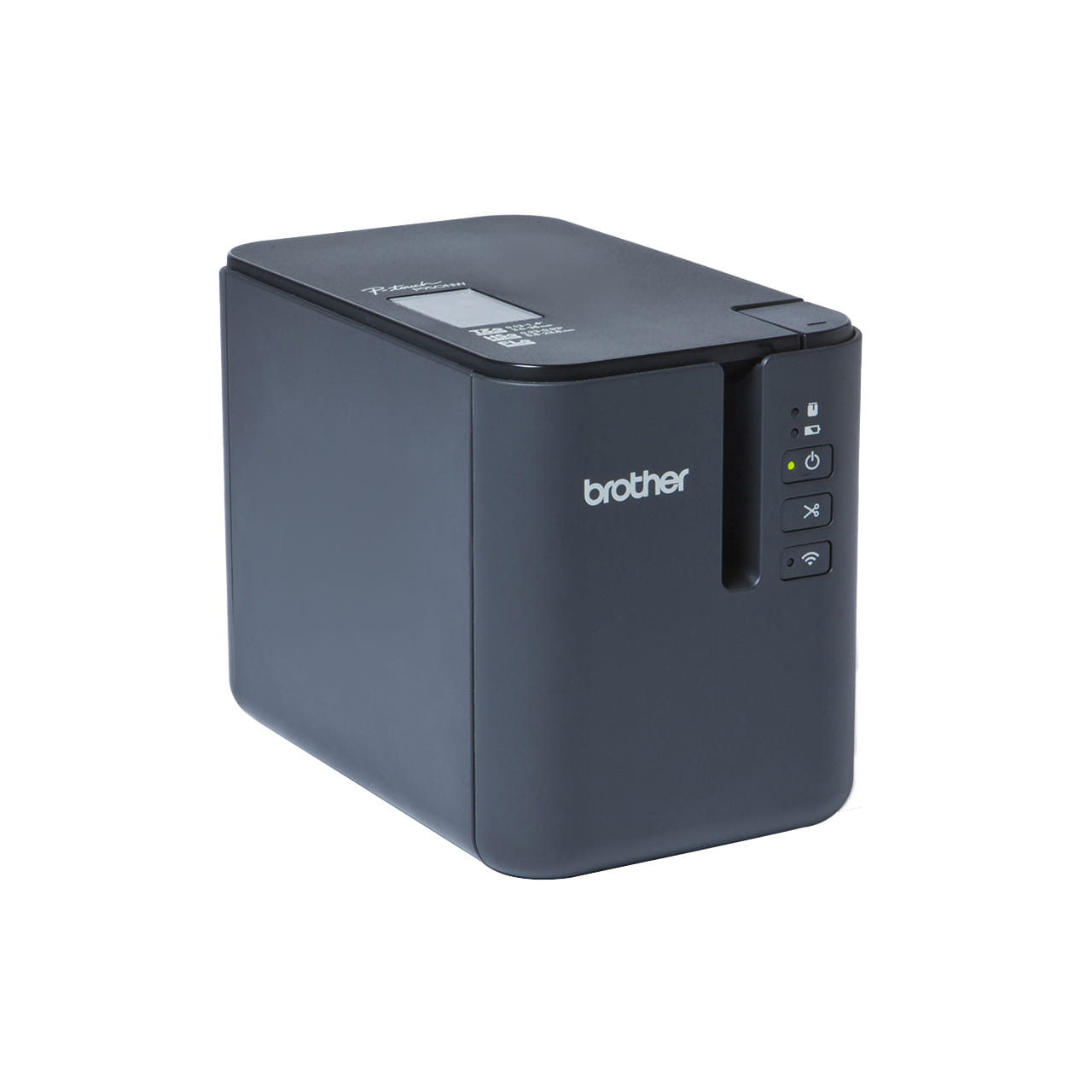

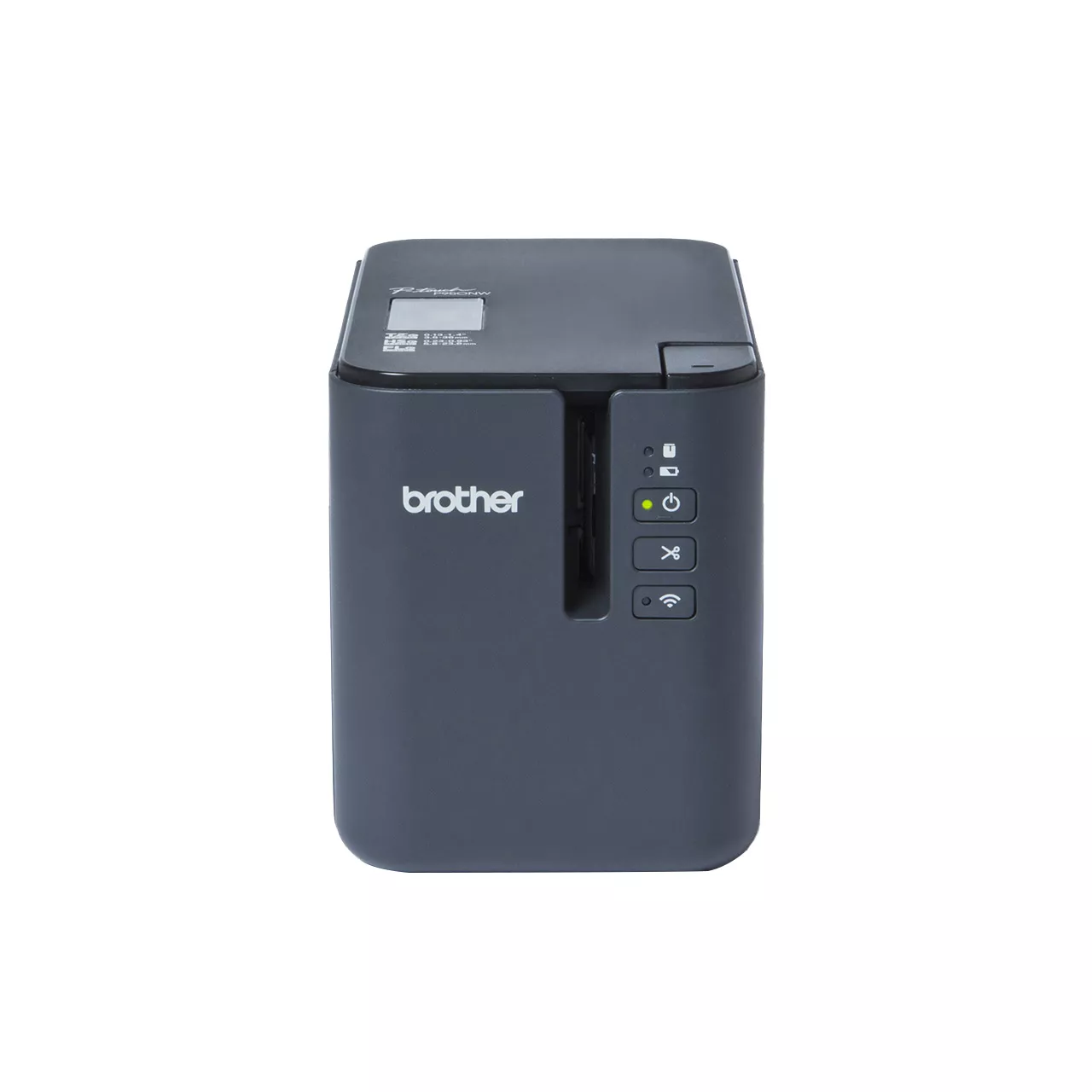

Networked industrial desktop labeller
- Print up to 36mm TZe laminated tapes width
- USB, USB Host, Wired Network and WiFi connection
- Auto and Half cut function
- High print resolution up to 360dpi x 720dpi
- Fast print speed of up to 60mm per second
- Print images, barcodes, frames and imported database
Information
Overview
Specifications
Basic Specs
Keyboard
Not available
Display Type
Yes (optional Touch Display Unit PA-TDU-003 is required)
Media Type
TZe Tape (Laminated), HSe Tape
Available Tape Widths
3.5, 6, 9, 12, 18, 24, 36mm
Product Dimensions (Width X Depth X Height)
118 mm × 192 mm × 146 mm
Weight
1.51 kg
Print Speed
60mm/sec
Warranty
1 Year Carry in Warranty
Resolution
360 dpi
No. Of Printable Lines
17 Lines
Number of Characters
826
Number of Symbols
618
Barcode
21 barcode protocols on P-touch Editor 5.1
Numbering
Yes (1-999)
Connectivity
Connectivity
USB, Wireless LAN
Media
Maximum Tape Width
Up to 36 mm
Maximum Roll Width
3.5mm up to 36mm
Functions
Cutter
Auto and half cutter
Multi Block Printing
PC
Copy Printing
Yes (1-999)
Mirror Printing
N/A
Preview
No
Memory
File Storage
99 files
Power
Power Source
AC Adapter (Included), Rechargeable Li-ion battery and base (Optional)
Auto Power-Off
Yes
