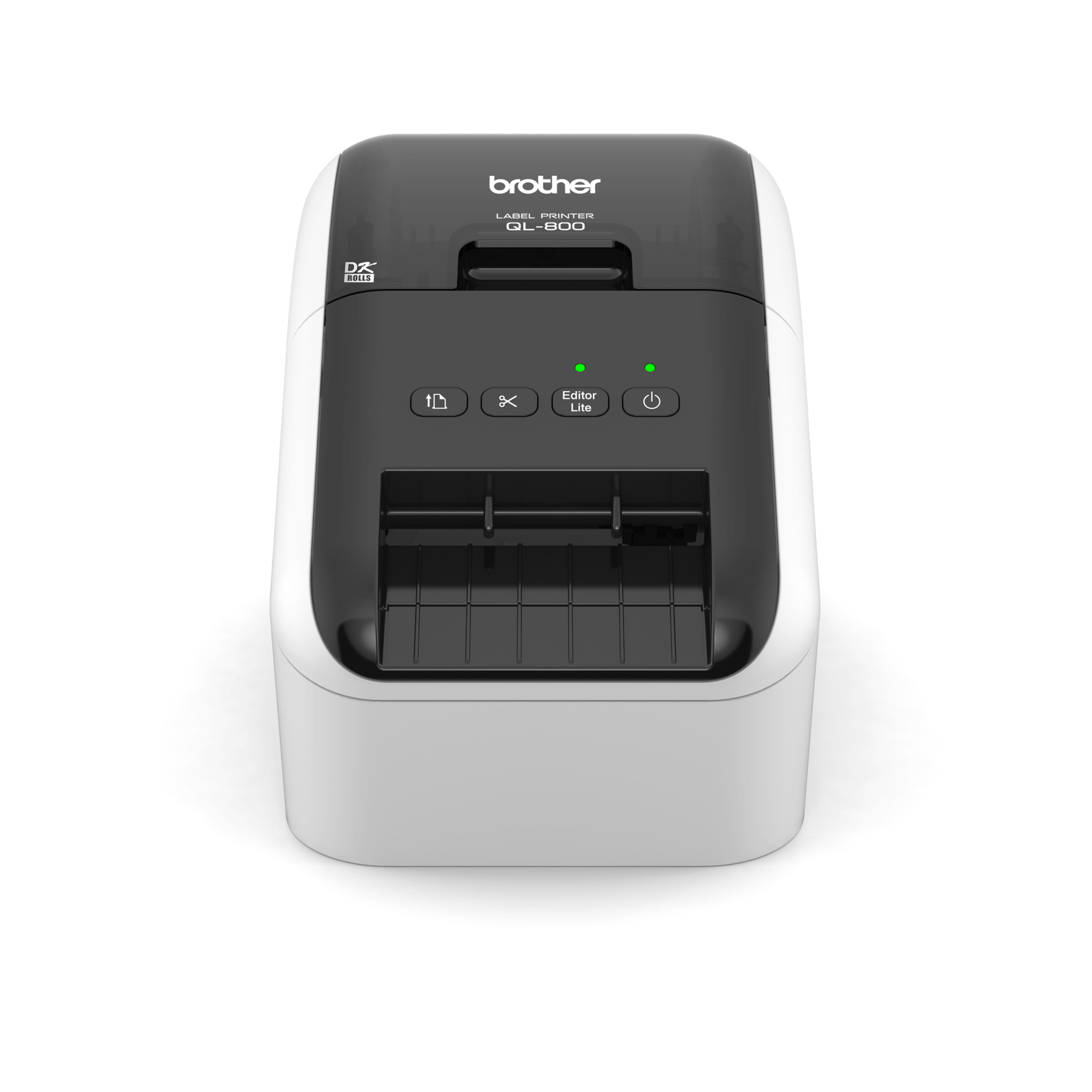

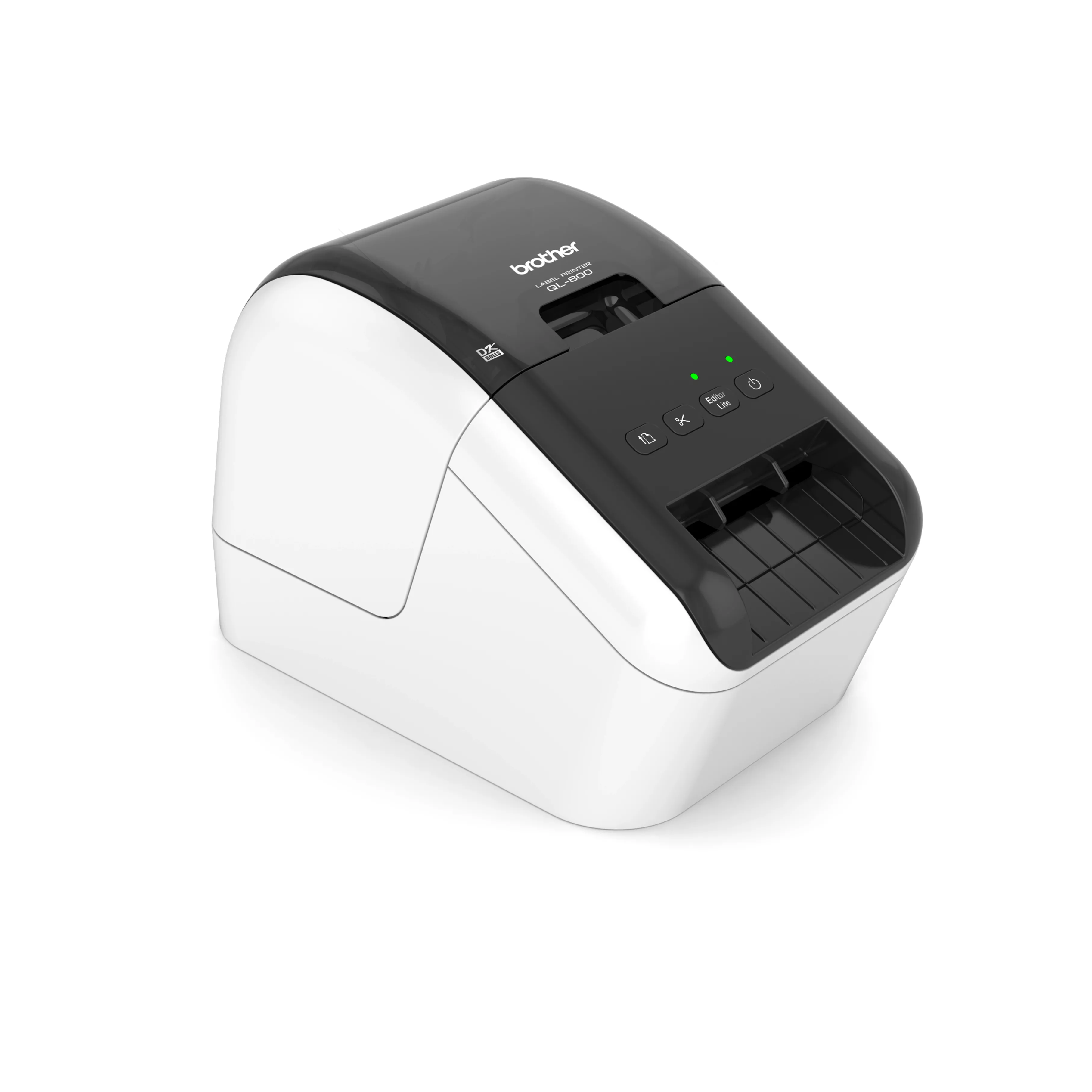

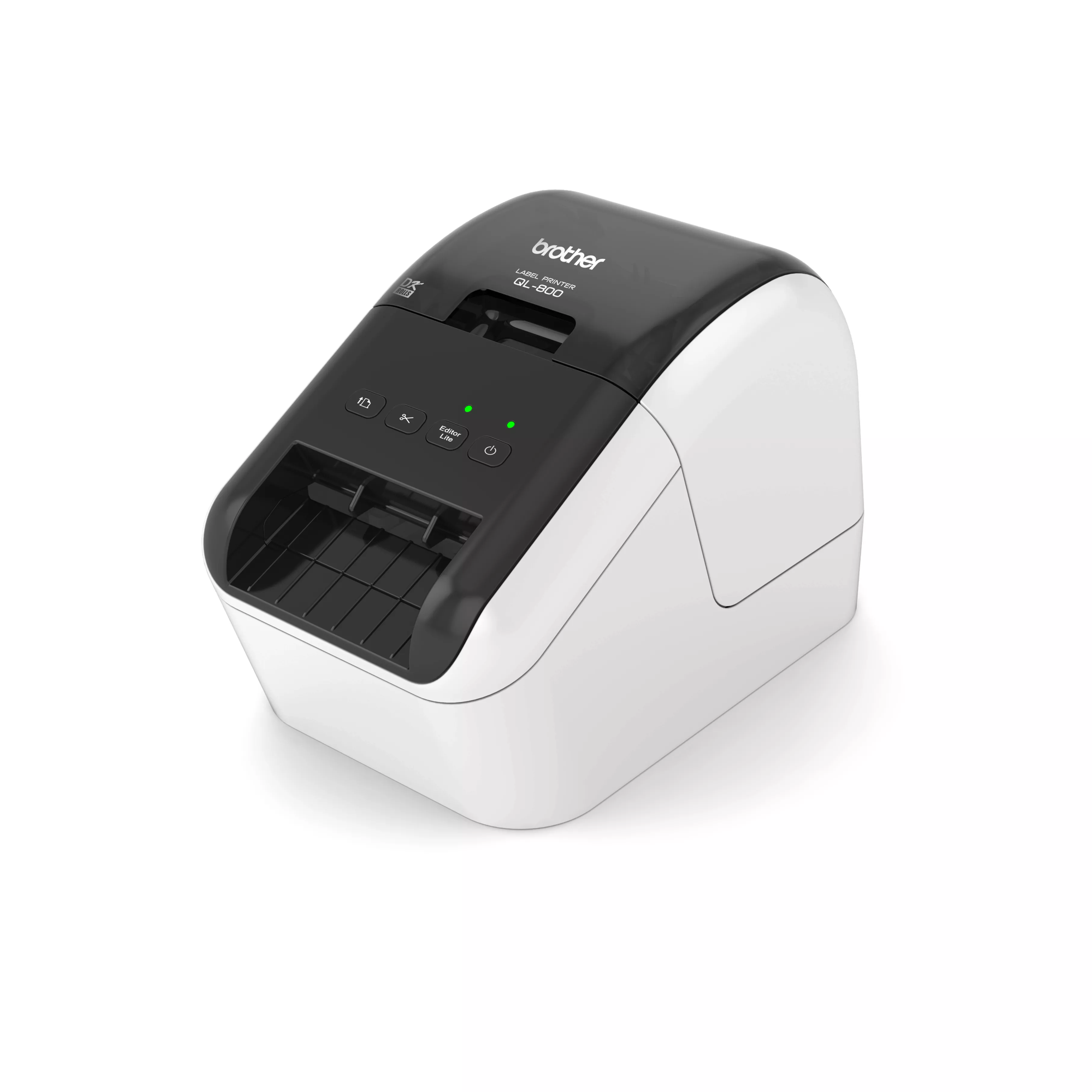

High Speed Professional Label Printer
- Print up to 62mm DK rolls width
- USB connection
- Auto cut function
- Prints Red/Black on White label
- Fast print speed of up to 148mm per second
- Comes with Label collection templates
Information
Overview
Specifications
Basic Specs
Media Type
DK roll
Available Tape Widths
up to 62mm
Product Dimensions (Width X Depth X Height)
125.3 mm × 213 mm × 142 mm
Weight
1.15 kg
Print Speed
Max. 5.8"/sec. (148 mm/sec.)
2 color (black and red on white DK roll) Print: Max 0.9"/sec (24 mm/sec)
Actual print speed varies depending on the conditions.
Warranty
1 Year Carry in Warranty
Resolution
Standard: 300 dpi × 300 dpi
High resolution mode: 300 dpi × 600 dpi
Barcode
21 barcode protocols on P-touch Editor
Numbering
Yes
Connectivity
Connectivity
USB version 2.0 (Full Speed)
Media
Maximum Roll Width
up to 62mm
Printing Width
Up to 58 mm
Functions
Cutter
Durable automatic cutter
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
7.8MB
99 templates
Power
Power Source
240V AC 60Hz 1.7A
Auto Power-Off
Off/10/20/30/40/50/60 Minutes
Supported Commands
Supported Commands
Raster
