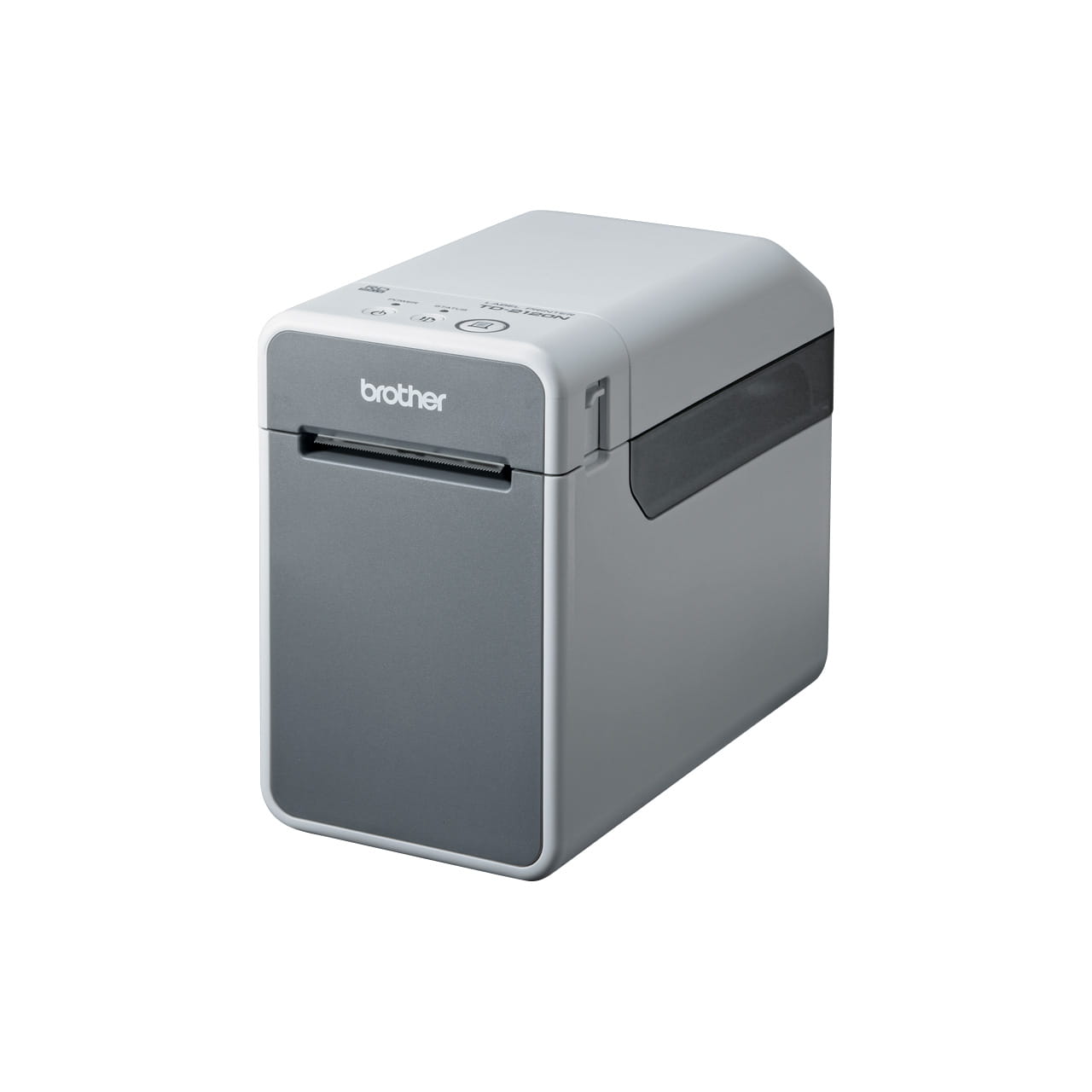

Thermal Label Printer
- Print up to 63mm RD rolls width
- USB, USB host, Serial and Wired LAN connection
- Tear Bar
- Print Labels, Receipts, and Wristbands
- Print Labels, Receipts, and Wristbands
- Compatible with customised media
Information
Overview
Specifications
Basic Specs
Display Type

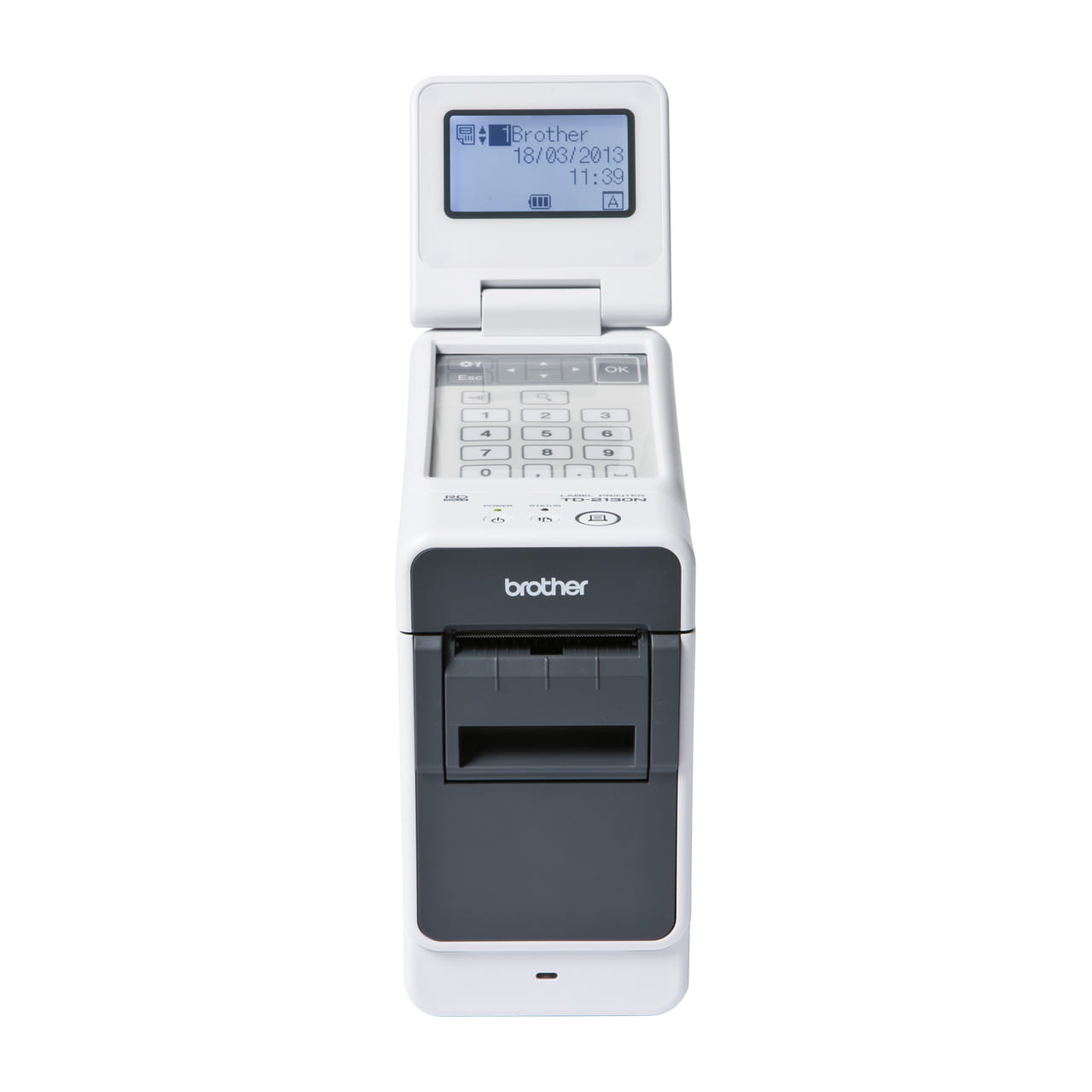

Optional Touch Display Unit
Media Type
Brother RD rolls / Non-proprietary die-cut or continuous rolls
Available Tape Widths
Up to 63mm
Product Dimensions (Width X Depth X Height)
110 mm × 215 mm × 172 mm
Weight
1.34 kg
Print Speed
152.4mm/sec (AC adapter)
76.2mm/sec (Li-ion battery)
Warranty
1 Year Carry in Warranty
Resolution
203 dpi
Barcode
21 barcode protocols on P-touch Editor 5.1
Numbering
Yes
Connectivity
Connectivity
USB version 2.0 (Full Speed) (mini-B), Wireless LAN (Optional), Bluetooth
Media
Maximum Roll Width
up to 63mm
Printing Width
Up to 56 mm
Functions
Cutter
Die-cut labels / Tear off
Copy Printing
Yes
Mirror Printing
Yes
Preview
No
Memory
File Storage
max 99 templates
Memory Buffer Size
6MB
Power
Power Source
100 - 240 V 50/60 Hz
Auto Power-Off
Yes
Supported Commands
Supported Commands
P-touch Template2.0 , ZPLII compatible, Raster, ESC/P
