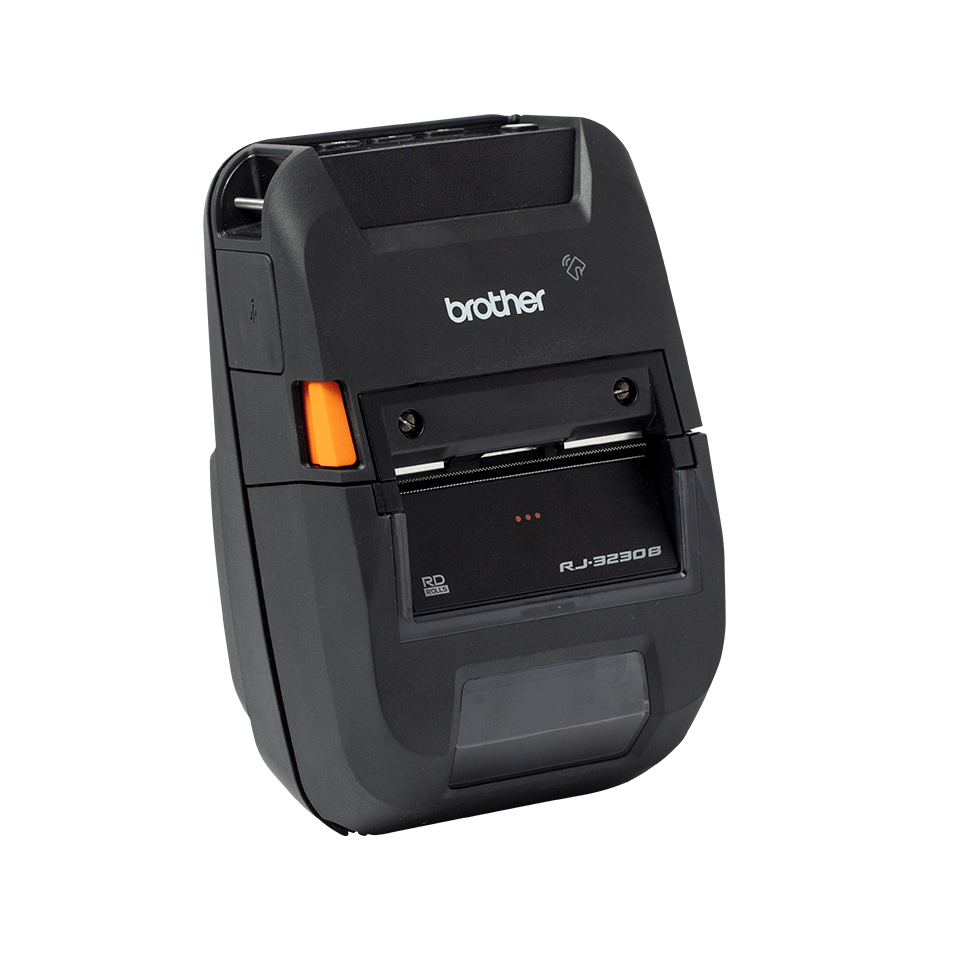

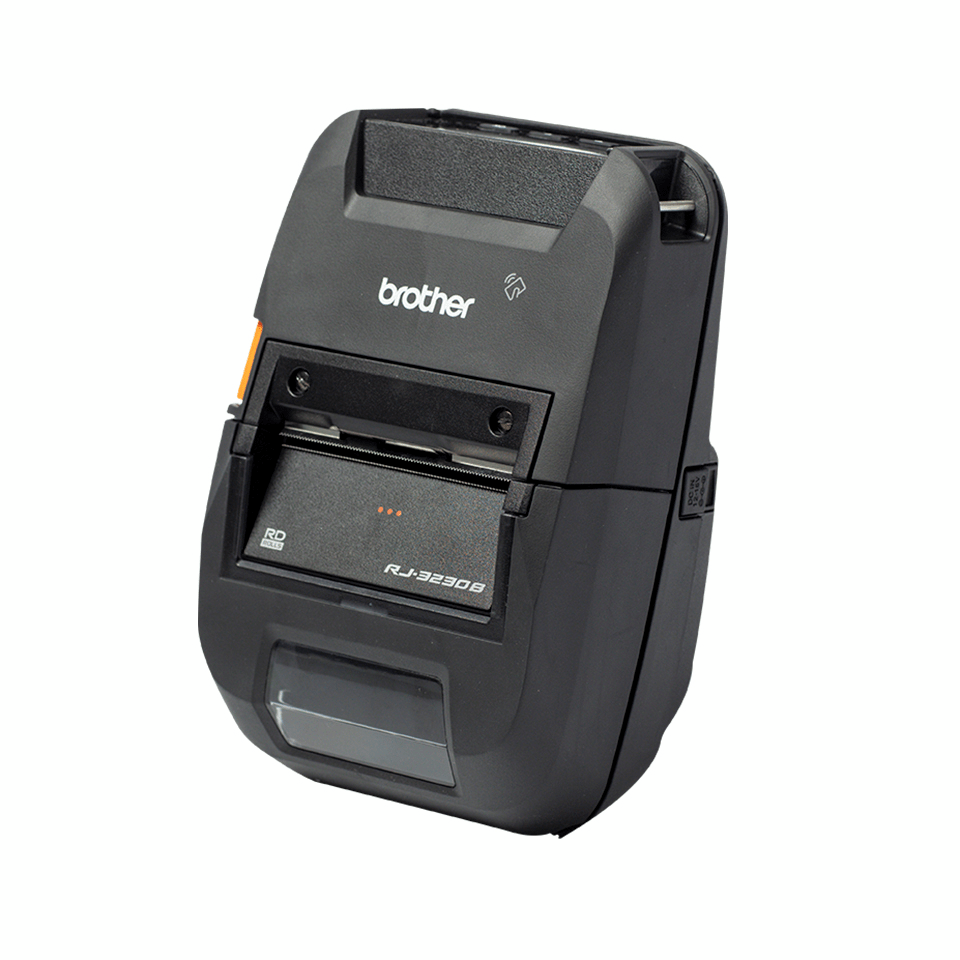

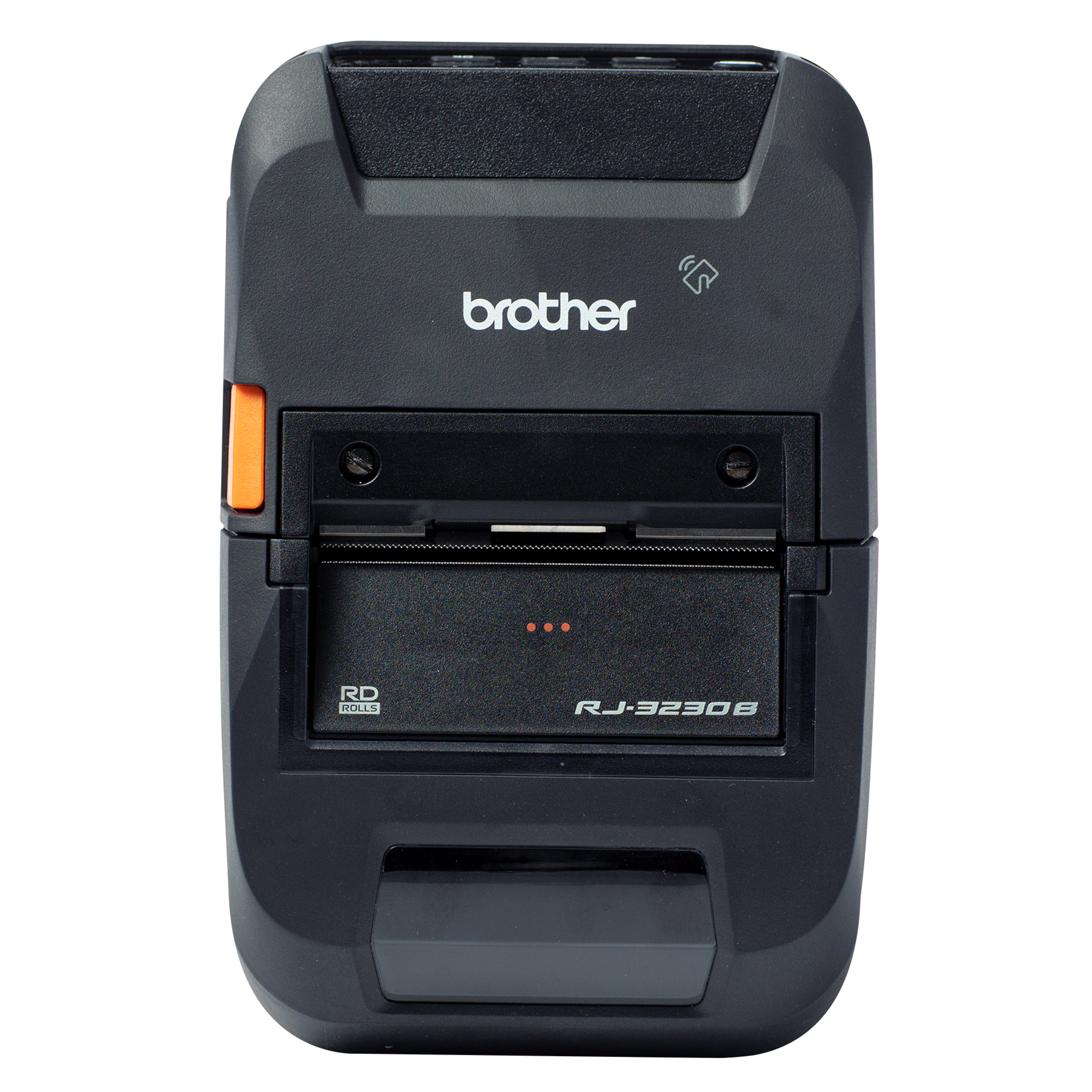

3-Inch Label & Receipt Mobile Printer
- Rugged design that’s built to last
- Prints up to 3 inch or 72mm width (Receipt/Label)
- Can endure drops from up to 2m in height (IP54 rated)
- USB-C, NFC, and Bluetooth connectivity
- Smart Li-ion battery
- 12-month return-to-base warranty
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Mobile Printer
Product Dimensions (Width X Depth X Height)
117 mm × 180 mm × 77 mm
Weight
807 g
Print Speed
127mm per second, 5ips
Paper Type
Non-coated thermal receipt paper, Coated thermal receipt paper, Direct thermal die-cut labels, Tags labels
Paper Size
Maximium Media Width: 80mm
Minimum Media Width: 25.4mm
Outer diameter: Up to 66mm
Inner diameter: Standard 25.4mm, In-box 12.7-13.0mm or 19.0mm
Sealing
IP54 dust- and water-resistance rating (without case)
Resolution
203 dpi
Printing Width
Up to 72 mm
Barcode
Linear: CODE39, CODE93, CODE128, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
USB version 2.0 (Full Speed) (Type C), NFC (Passive only)
Display & Memory
Display Type
Monochrome LCD
Memory Capacity
Ram: 256 MB
Flash: 128 MB
Operation
Power Source
PA-BT-006 Rechargeable Li-ion Smart Battery.
[PA-AD-600A UK AC Power adapter, PA-CD-600CG Car adapter (Cigarette socket type), PA-CD-600WR Car adapter (Permanent wired type), PA-BEK-001CG Battery Eliminator Kit (Cigarette socket type), PA-BEK-001WR Battery Eliminator Kit (Wired type), PA-BC-003 Battery charger, PA-CR-005 1-slot Charging cradle with Ethernet, PA-4CR-003 4-slot Charging cradle with Ethernet (Purchase separately)]
Temperature Operating
-20°C to 55°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode)
Supported Operating Systems
Supported OS
Microsoft® Windows® 7/8.1/10, Windows® Server 2012/2012 R2/ 2016/2019
