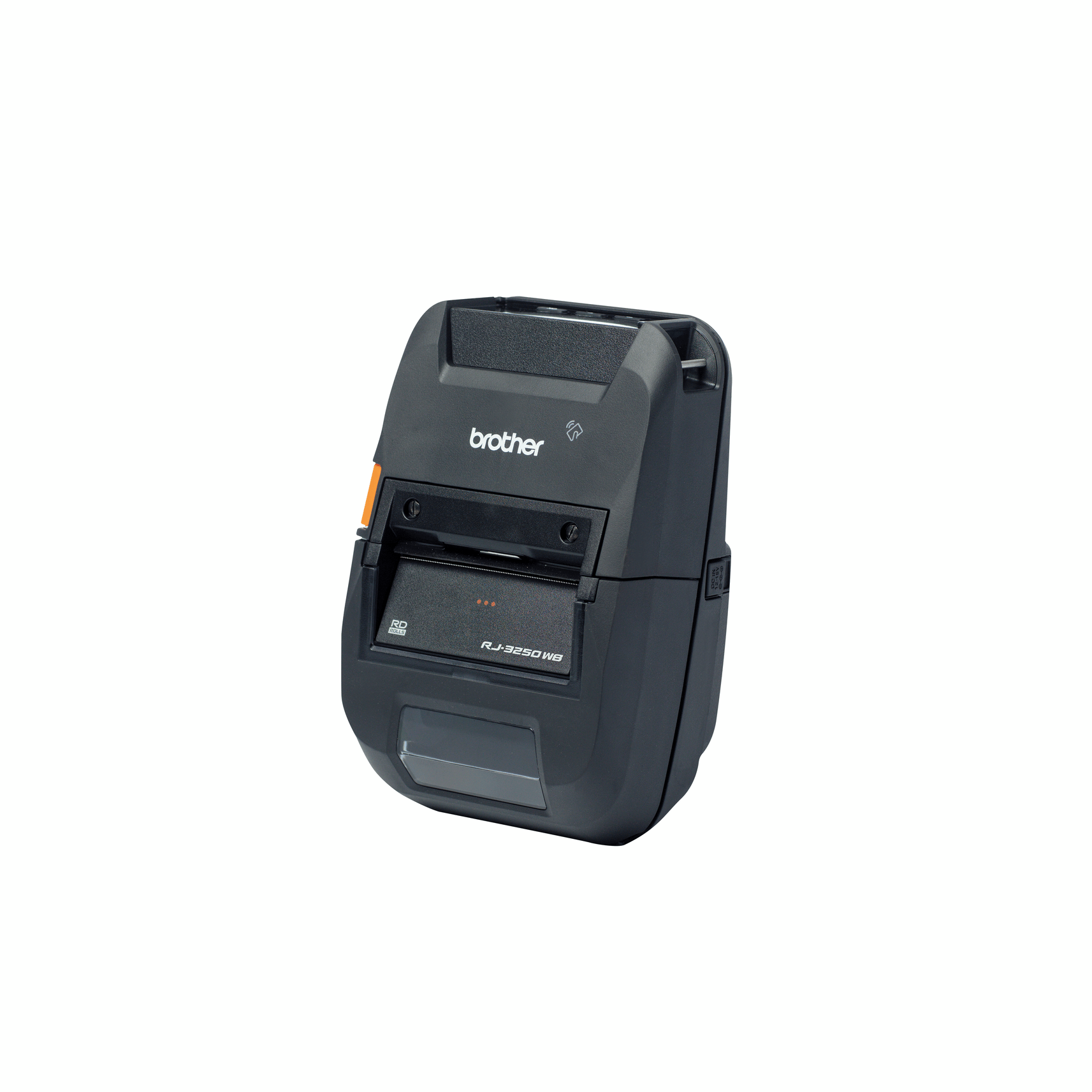

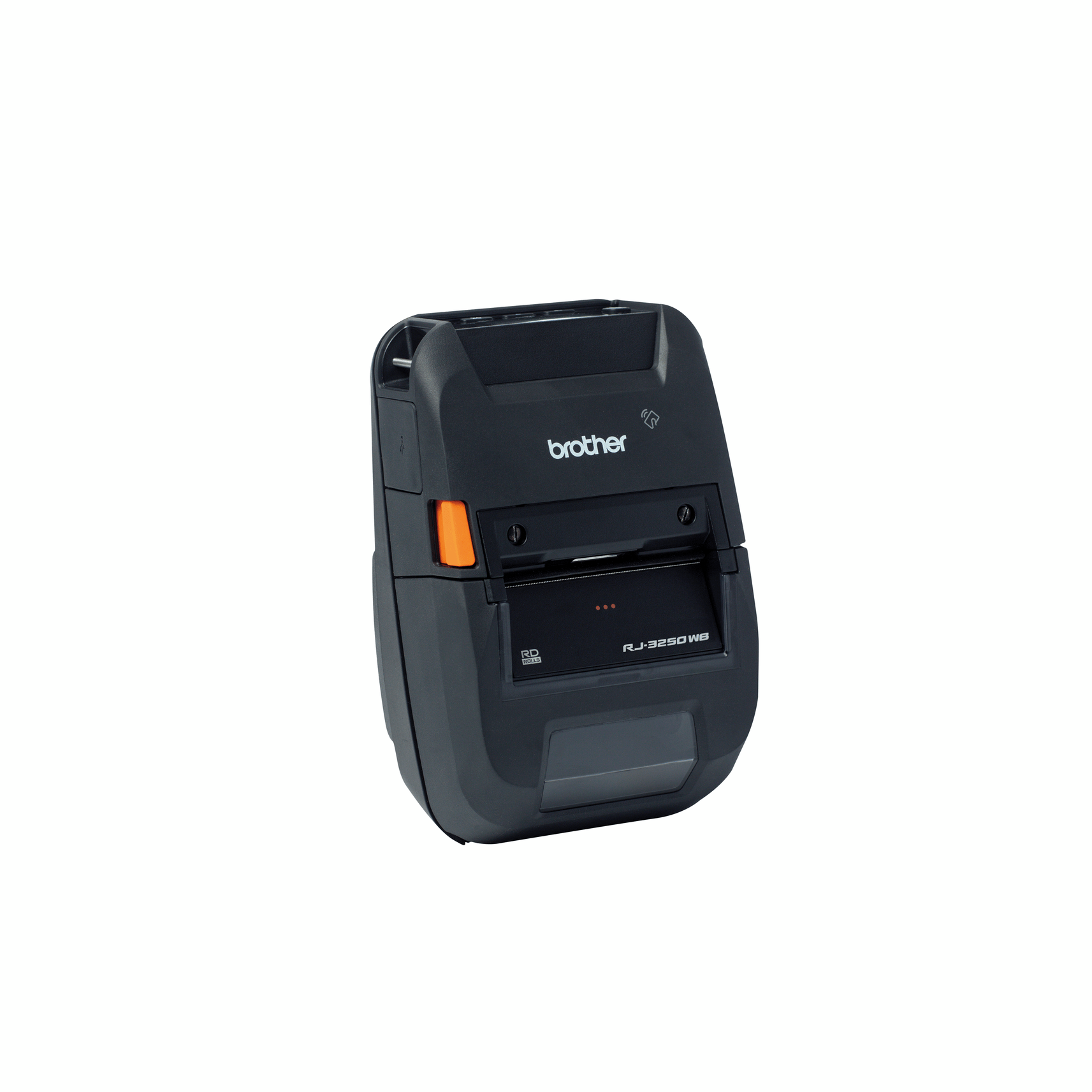

3-Inch Label & Receipt Mobile Printer
- A rugged design that’s built to last
- Prints up to 3-inch or 72mm width (Receipt/Label)

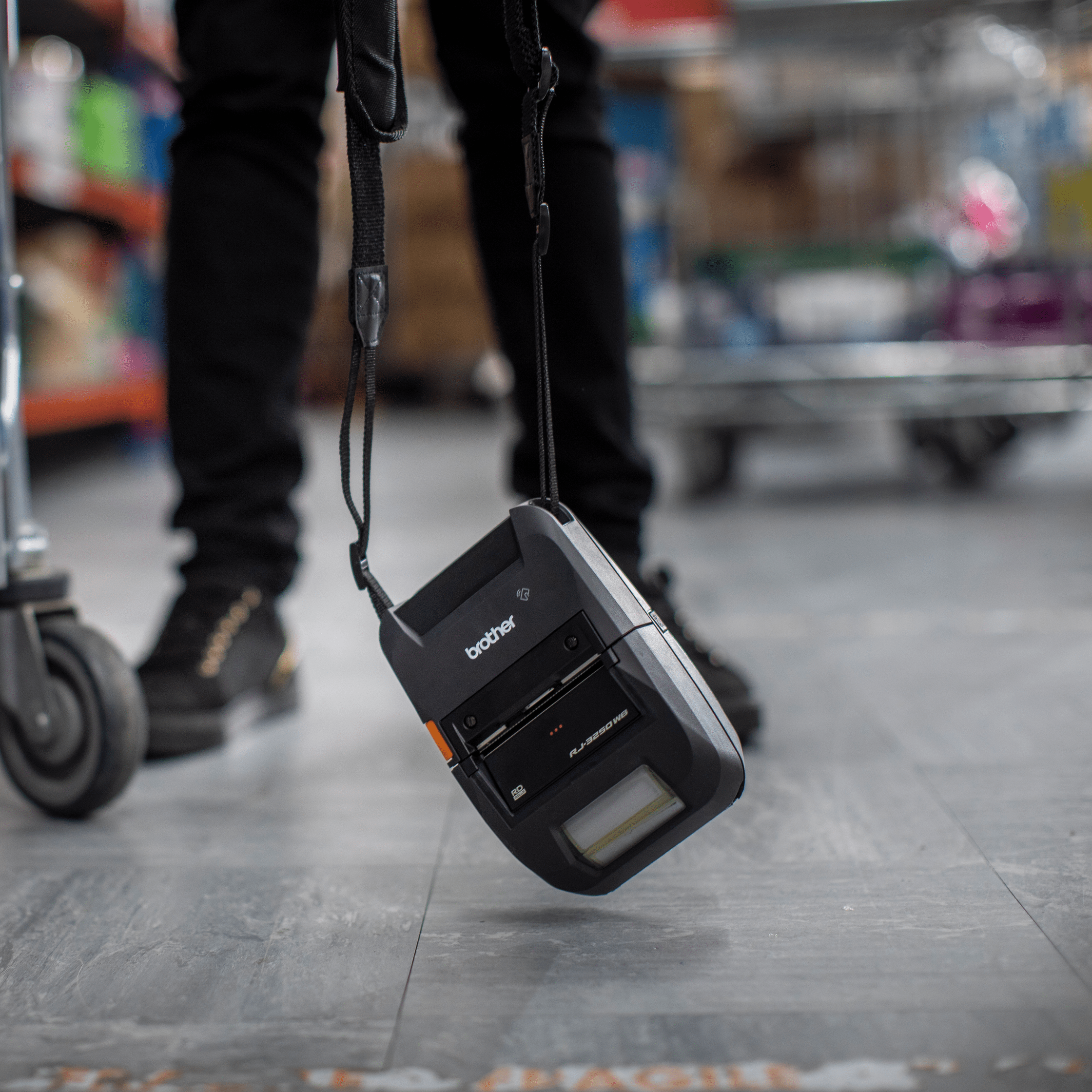

- Can endure drops from up to 2m in height (IP54 rated)
- USB-C, NFC, Bluetooth, WiFi and AirPrint connectivity
- Smart Li-ion battery
- 12-month return-to-base warranty
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Mobile Printer
Product Dimensions (Width X Depth X Height)
117 mm × 180 mm × 77 mm
Weight
807 g
Print Speed
Up to 5 ips (127 mm/sec)
Paper Type
Receipt, Gap/Black mark Label, Tag, Linerless (Optional)
Paper Size
Up to 80mm
Sealing
IP54 dust- and water-resistance rating (without case)
Maximum Paper Capacity
Non-coatd Thermal paper, Coated thermal paper, Direct Thermal die cut labels
Resolution
203 dpi
Printing Width
Up to 72 mm
Barcode
Linear: CODE39, CODE93, CODE128, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW-7), GS1-128(UCC/EAN-128), POSTNET, GS1 DataBar(RSS), MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5
2D: QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 Databar Composite
Connectivity
Connectivity
Wireless LAN IEEE 802.11a/n (5GHz)
Display & Memory
Display Type
Mono LCD wtih Back Light
Memory Capacity
Ram: 256 MB
Flash: 128 MB
Operation
Power Source
AC adapter (Optional): 15 V Car adapter (Optional): 12 V (DC)
Temperature Operating
-20°C to 55°C
Supported Commands
Supported Commands
Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation (CPCL page print mode / CPCL line print mode)
Supported Operating Systems
Supported OS
Windows 7, Windows 8.1, Windows 10, Windows Server 2012/2012 R2/2016/2019
Network
Wireless Network Security
SSL/TLS1.0/1.1/1.2 (HTTPS, IPPS) SNMPv3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3-SAE (AES)
