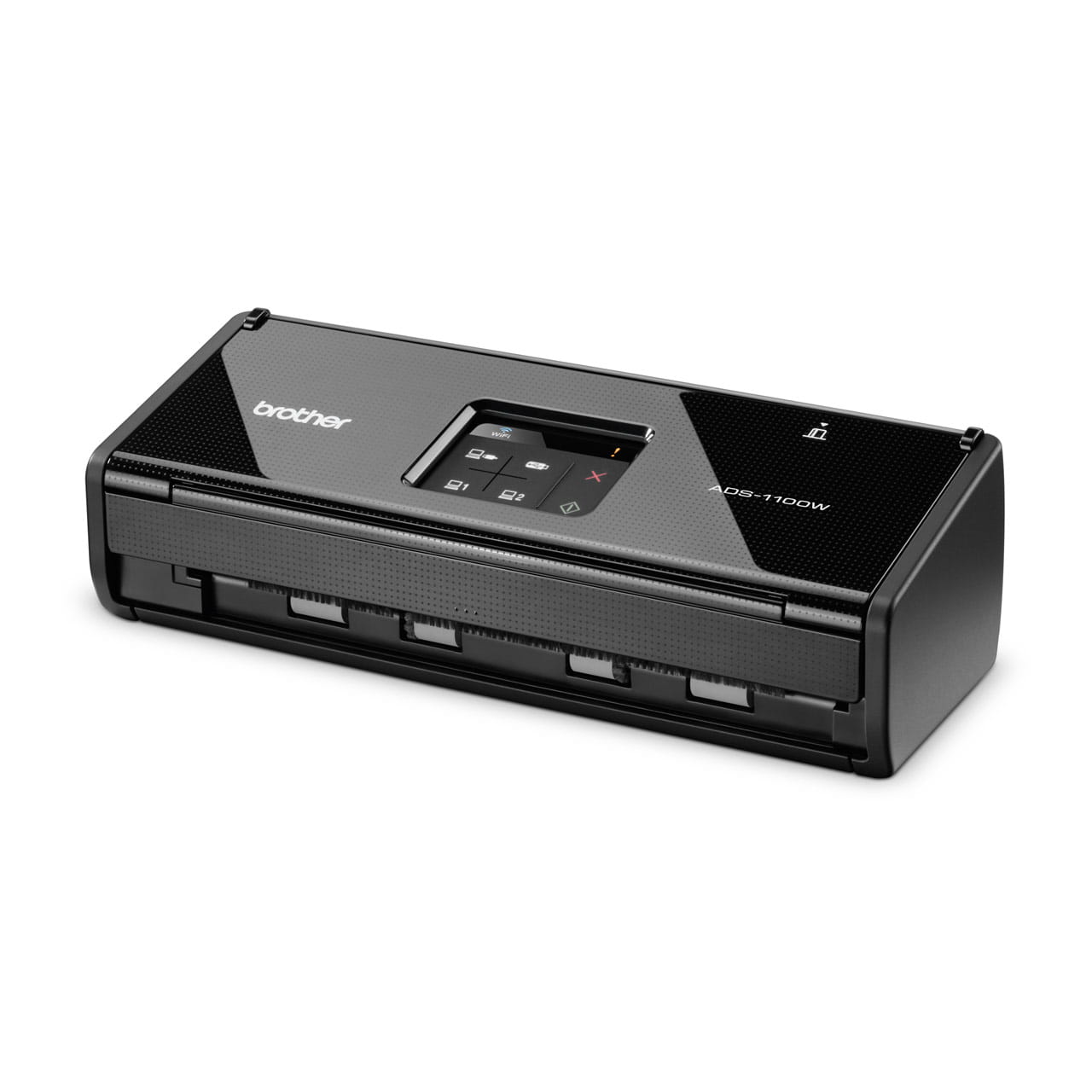

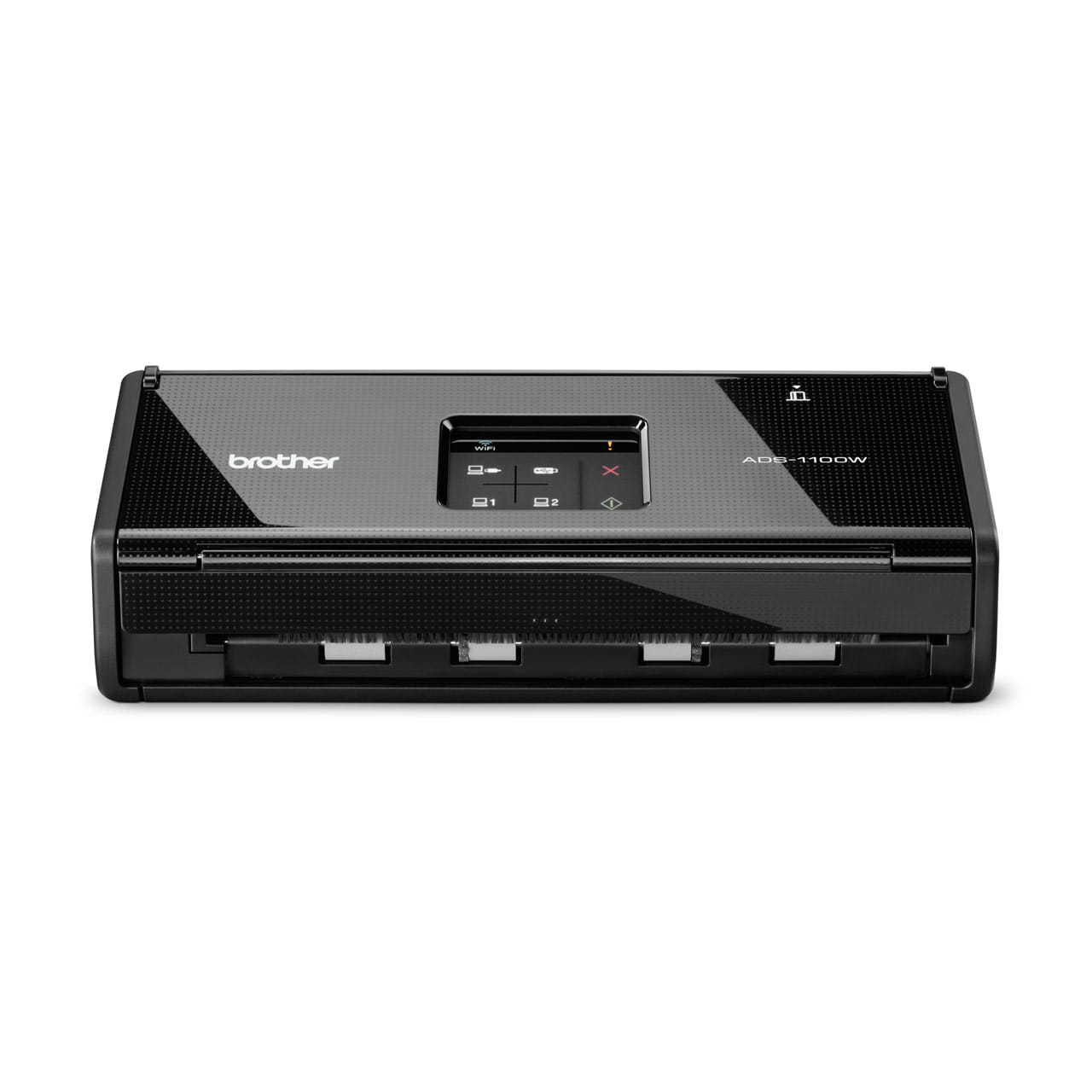

Compact Wireless Desktop Scanner with Automatic Document Feeder
- Up to 16ppm/32ipm 2-sided colour scan speed
- Scan documents of various sizes in mono or colour
- Store scans directly on a USB thumbdrive
Delivering fast, high quality 2-sided (duplex) scanning, the Brother ADS-1100W is a complete solution to your scanning needs. Easy to use with a versatile Automatic Document Feeder (ADF) capable of scanning a range of documents from receipts to reports. Scan and send your documents wirelessly without the need to connect the machine to a PC - the reliable ADS-1100W will improve productivity in the workplace.
Information
Overview
Specifications
Basic Specs
Scanning Speed
16 ppm＠300dpi ※ (A4) All image processing is OFF
Document Size - Multiple Sheets - Width
51 mm to 215.9 mm
Document Size - Multiple Sheets - Length
70 mm to 297 mm
Document Size - Single Sheet - Width
51 mm to 215.9 mm
Document Size - Single Sheet - Length
70 mm to 863 mm
Colour / Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
30-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Max. 212 mm
Product Dimensions (Width X Depth X Height)
285 mm × 231 mm × 255 mm
Weight
1.5 kg
ADF (Automatic Document Feeder)
Up to 20 pages (Paper: 80 g/m²)
Memory Capacity
128 MB
Warranty
1 Year Carry in Warranty
Network
Wireless Network Security
SSID (32 characters), WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Setup Support Utility
AOSS™, WPS
Display Type
Touchscreen LCD
-
Operation
Power Source
AC: 220 - 240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 14W
Power Consumption - Ready
Approx. 4.0W
Power Consumption - Power Saving / Deep Sleep
Approx. 1.5W
Power Consumption - Power OFF
Approx. 0.25W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Compliance
TWAIN Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7 / Windows® 8
TWAIN Compliant - Macintosh
Mac OS X v10.6.8, 10.7.x, 10.8.x
WIA Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7 / Windows® 8
ICA Compliant - Macintosh
Mac OS X v10.6.8, 10.7.x, 10.8.x
ISIS™ Compliant - Windows®
Windows® XP / Windows Vista® / Windows® 7 / Windows® 8
