Small but powerful 35ppm 2-sided (duplex) desktop document scanner
- 35ppm/70ipm 2-sided colour scan speeds
- Hi-Speed USB 2.0 connectivity
- 50 sheet automatic document feeder (ADF)
- Scan to multiple locations including searchable PDF, file, OCR, email and USB flash drive

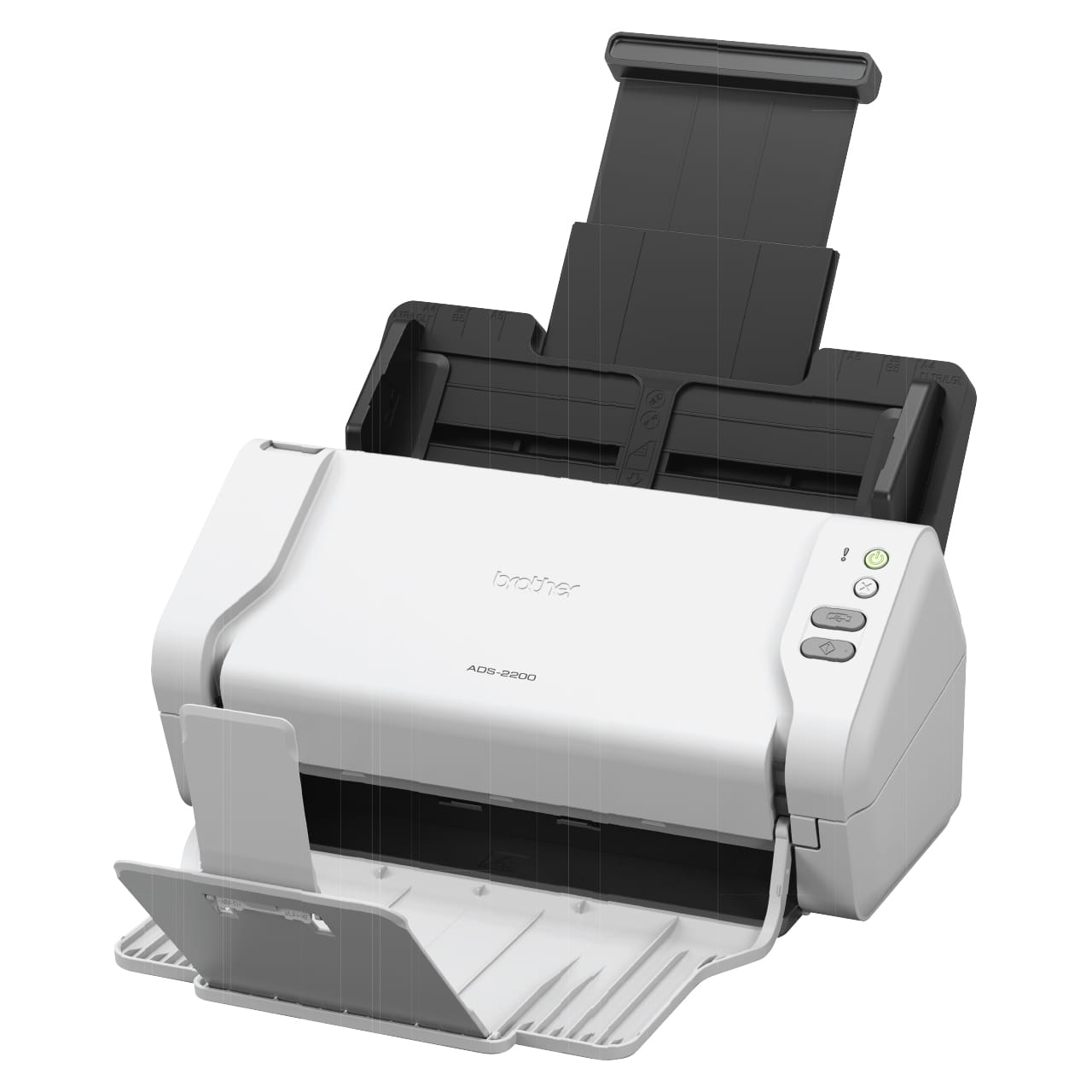

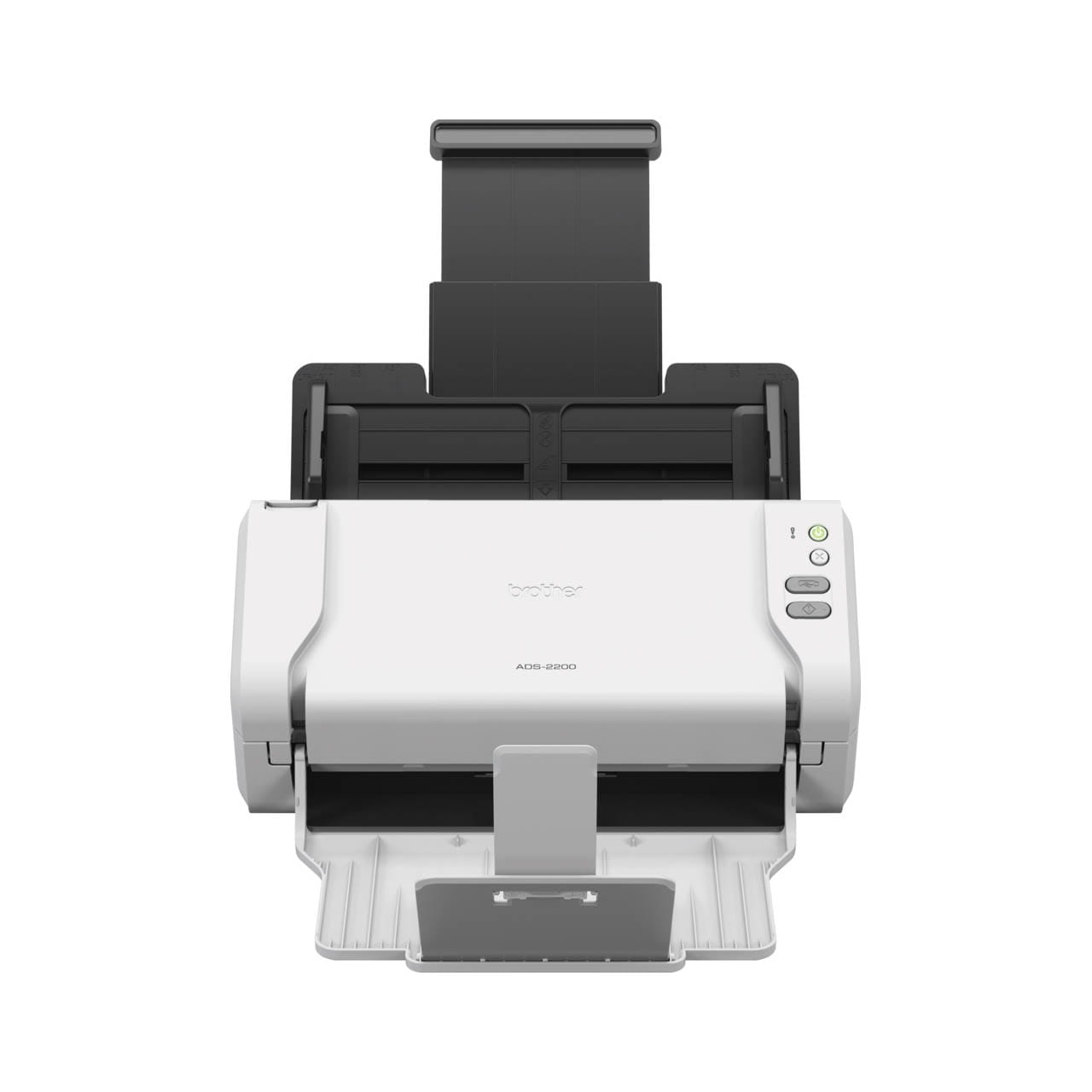

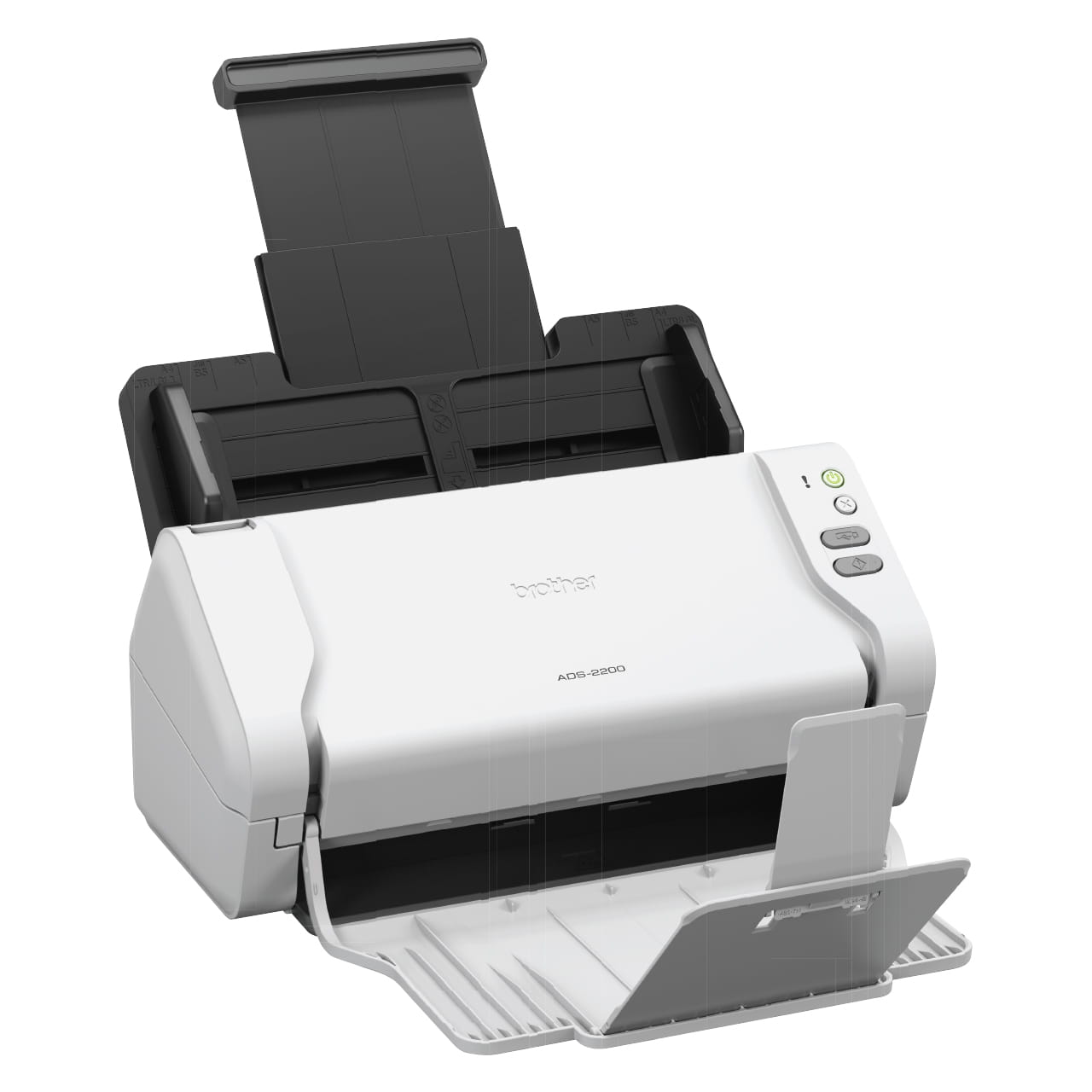

The easy to use ADS-2200 desktop scanner is the ideal solution for a variety of business scanning needs thanks to its fast 35ppm scan speeds and ability to process a variety of media (including double sided documents, receipts and even embossed plastic cards) within the same batch.
Information
Overview
Specifications
Basic Specs
Scanning Speed
35 ppm (2.0 seconds (A4/LTR))
Document Size - Multiple Sheets - Width
51 mm to 215.9mm
Document Size - Multiple Sheets - Length
52 mm to 355.6 mm
Document Size - Single Sheet - Width
51 mm to 215.9mm
Document Size - Single Sheet - Length
51mm to 5,000 mm
Colour/ Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
48-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Max. 215 mm
Product Dimensions (Width X Depth X Height)
299 × 145 × 141
ADF (Automatic Document Feeder)
Up to 50 pages (Paper: 80 g/m²)
Memory Capacity
512 MB
Operation
Power Source
AC: 100-240V, 50/60 Hz
DC: 24V, 1A
Power Consumption - Scanning
Approx. 21W
Power Consumption - Ready
Approx. 4.7W
Power Consumption - Power Saving / Deep Sleep
Approx. 0.8W
Power Consumption - Power OFF
Approx. 0.1W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows®XP(SP3)/7(SP1)/8/8.1/10
Windows®Server 2008 R2(SP1)/2012/2012R2/2016
*XP does not support WIA.
TWAIN Compliant - Macintosh
OSX 10.10.x/ 10.11.x/ 10.12.x/ 10.13.x/ 10.14.x
ICA Compliant - Macintosh
OSX 10.10.x/ 10.11.x/ 10.12.x/ 10.13.x/ 10.14.x
