High-Speed Wired & Wireless Network Document Scanner
- 50 sheet mixed batch document capacity from long paper to embossed plastic cards
- Fast double sided-scans
- Achieve optimum performance with TWAIN, WIA, ICA, SANE drivers
- Free premium software bundle, including ABBYY FineReader Sprint and Nuance PaperPort
- NFC

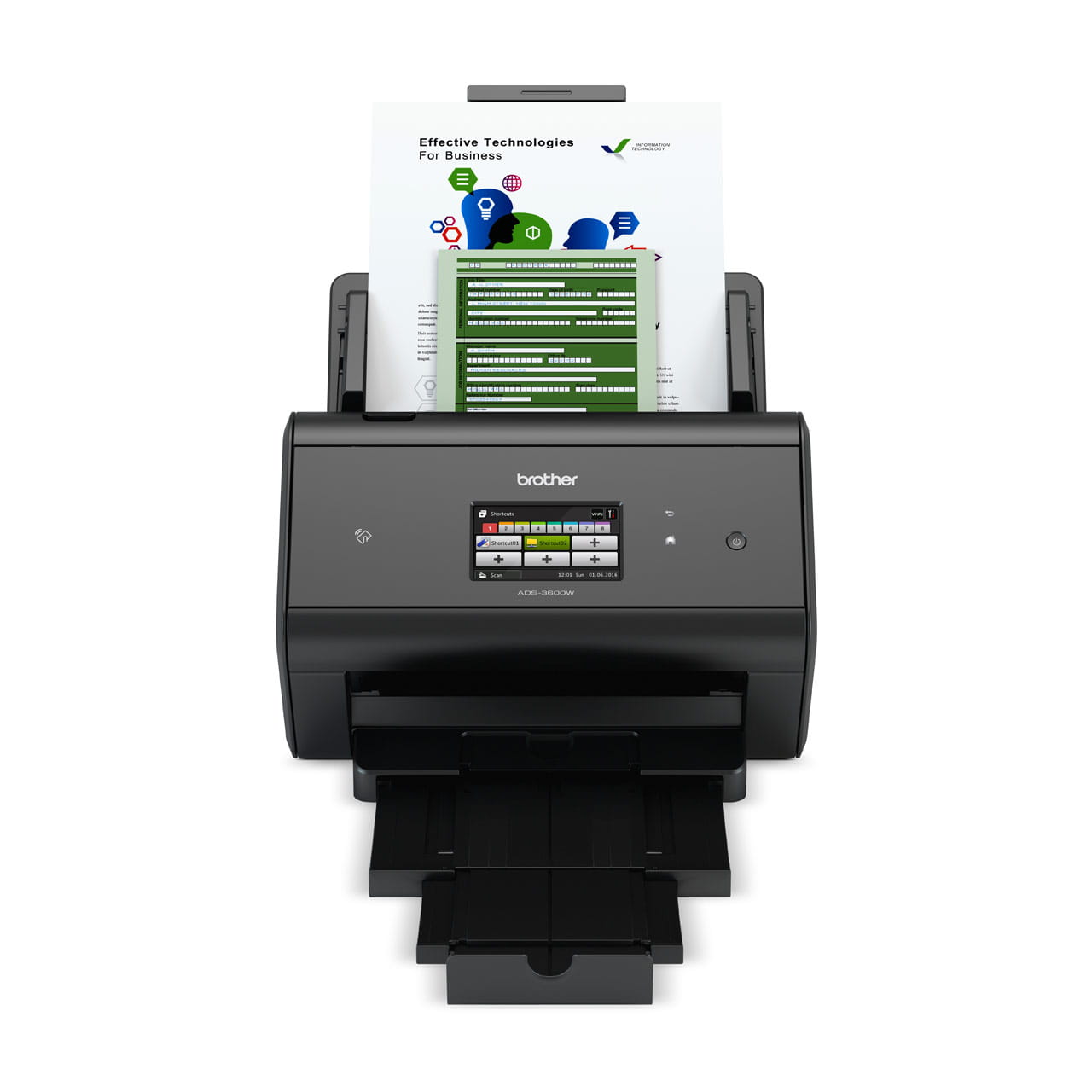

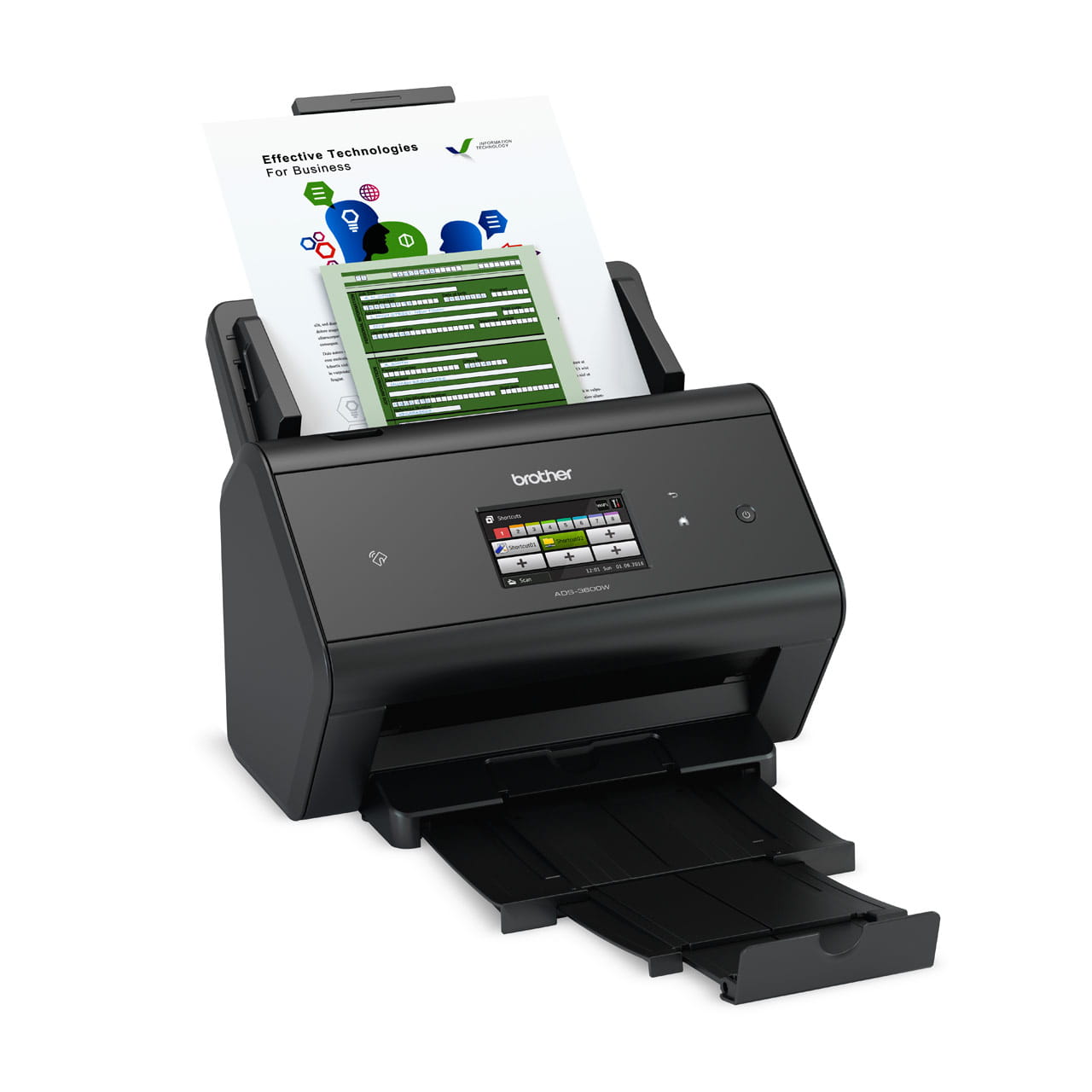

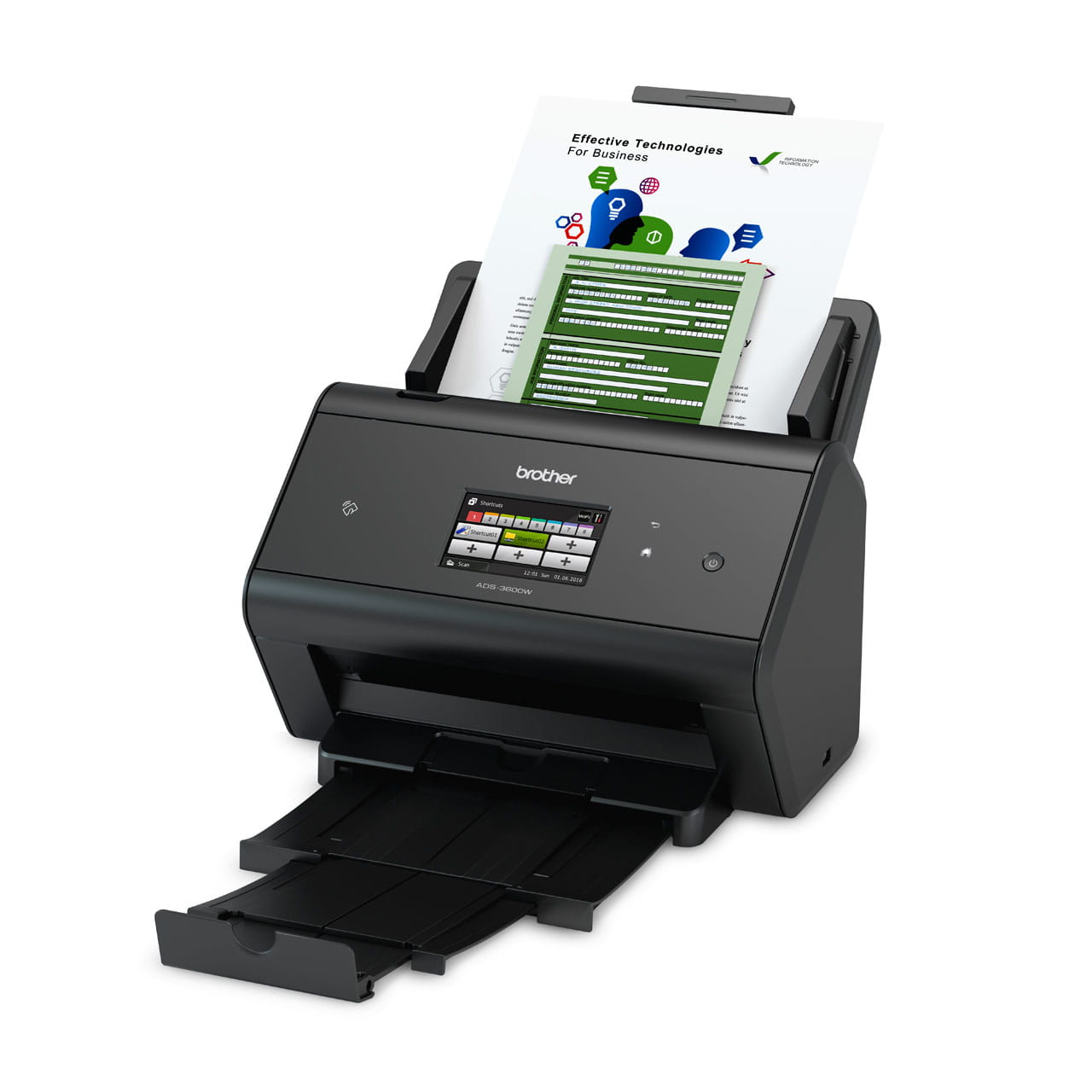

Brother’s ADS-3600W Wireless High-Speed Network Scanner is your trusted partner when it comes to turning your documents into digital assets. Featuring a 9.3cm LCD colour touchscreen, scan speeds of up to 50ppm, wired/wireless connectivity, the ability to scan directly to cloud services and smartphones, and the Brother Solutions Interface (BSI) that helps your organisation easily merge customised solutions with compatible Brother devices, this scanner is engineered for high performance and low maintenance. And, with Near Field Communication (NFC) that offers both security as well as efficient ‘touch to connect’ for direct scanning to mobile devices, the ADS-3600W is the smart choice to take your business forward.
Information
Overview
Specifications
Basic Specs
Scanning Speed
50 ppm 300dpi (1.2 seconds (A4/LTR))
Document Size - Multiple Sheets - Width
51 mm to 215.9 mm
Document Size - Multiple Sheets - Length
51 mm to 355.6 mm
Document Size - Single Sheet - Width
51 mm to 215.9 mm
Document Size - Single Sheet - Length
51 to 5,000 mm
Colour/ Monochrome
Yes / Yes
2-Sided (Duplex) Scan
Yes
Colour Depth - Input
30-bit colour processing
Colour Depth - Output
24-bit colour processing
Resolution - Optical
Max. 600 dpi × 600 dpi
Resolution - Interpolated
Max. 1,200 dpi × 1,200 dpi
Document Scanning Width / Length
Max. 215 mm
Product Dimensions (Width X Depth X Height)
306 mm × 250 mm × 258 mm
Weight
4.6 kg
ADF (Automatic Document Feeder)
Up to 50 pages (Paper: 80 g/m²)
Memory Capacity
512 MB
Warranty
1 Year Carry in Warranty
Network
Wireless Network Security
WEP 64/128-bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), Enterprise WPA/WPA-PSK (AES), EAP, EAP RAST, PEAP, EAP TTLS, EAP TLS
Setup Support Utility
WPS
WLAN Assistant
Display Type
Touchscreen LCD
3.7 inches (93.4 mm), TFT colour LCD screen
Operation
Power Source
AC: 220 - 240 V, 50/60 Hz
Power Consumption - Scanning
Approx. 30W
Power Consumption - Ready
Approx. 4.9W
Power Consumption - Power Saving / Deep Sleep
Approx. 2.9W
Power Consumption - Power OFF
Approx. 0.12W
Temperature Operating
5°C to 35°C
Humidity - Operating
20% to 80%
Humidity - Storage
10% to 90%
Compliance
TWAIN Compliant - Windows®
Windows® XP Home (SP3) / Windows® XP Professional (SP3, x32 only) / Windows Vista® / Windows Server® 2003 (only 32 bit) / Windows Server® 2008 / Windows Server® 2008 R2 / Windows Server® 2012 / Windows Server® 2012 R2 / Windows® 7 / Windows® 8 / Windows® 8.1
TWAIN Compliant - Macintosh
OS X 10.8.5, 10.9.x, 10.10.x
WIA Compliant - Windows®
Windows® XP (SP3) / Windows Vista® / Windows® 7 / Windows® 8 / Windows® 8.1
ICA Compliant - Macintosh
OS X 10.8.5, 10.9.x, 10.10.x
ISIS™ Compliant - Windows®
Windows Vista® / Windows® 7 / Windows® 8 / Windows® 8.1
