Business savings with duplex, high-speed multifunction printer
- Wired printing
- Wireless printing
- Duplex printing
- Auto document feeder
- 80-sheet multi-purpose tray
Information
Overview
Specifications
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Inkjet Printer

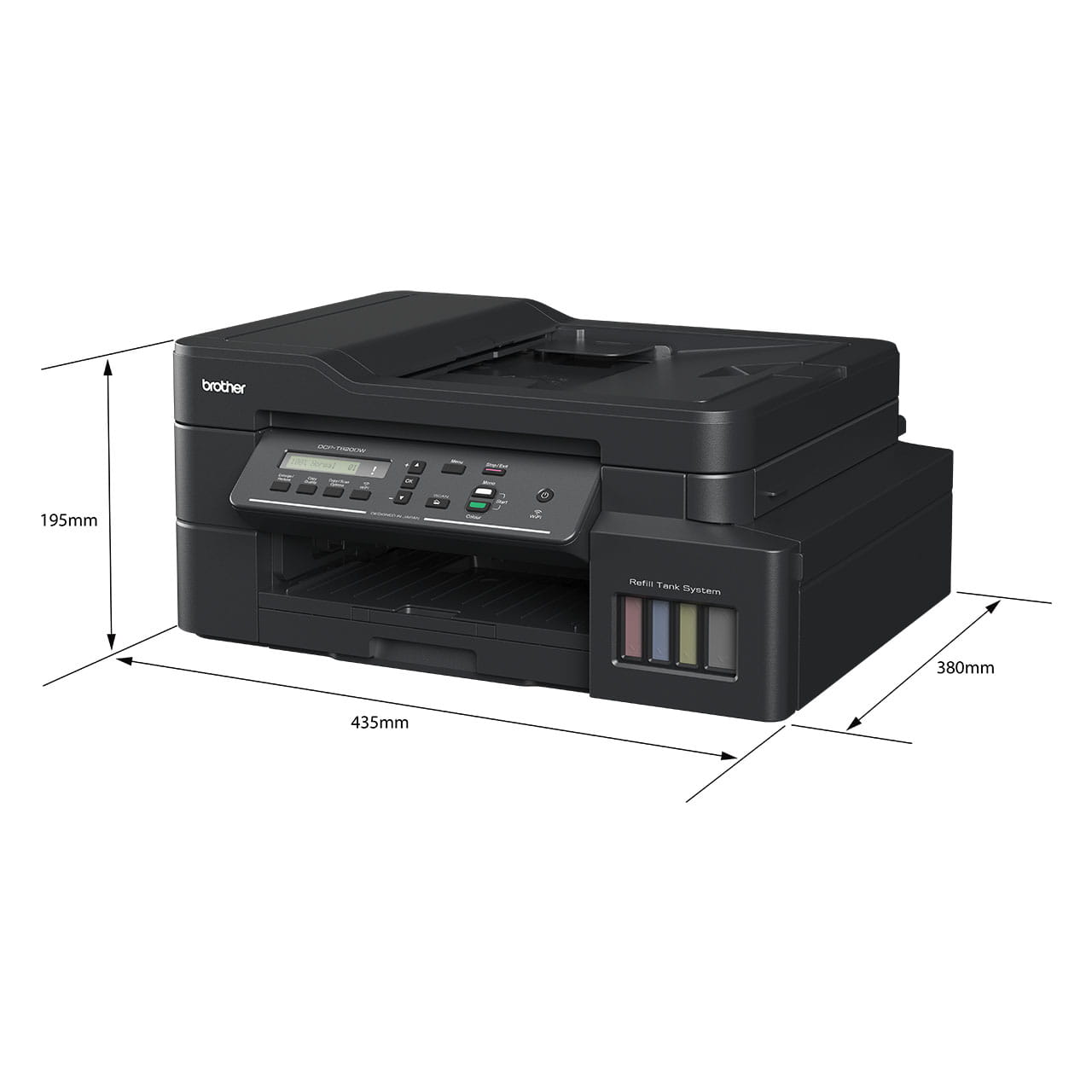

Product Dimensions (Width X Depth X Height)
435 mm × 439 mm × 195 mm
Weight
9.6 kg
Print Speed
17.0/16.5ipm
Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Paper Size
A4, Letter, Executive, A5, A6, Photo 4"x6", Indexcard 5"x8", Photo 5"x7", C5 Envelope, Com-10, DL Envelope, Monarch, Photo-3.5"x5"
Maximum Paper Capacity
230 sheets (80 gsm, plain paper)
Resolution
Up to 1,200 x 6,000 dpi
Borderless
A4, Letter, Executive, A5, A6, Photo 4"x6", Indexcard 5"x8", Photo 5"x7", Photo-3.5"x5"
2-Sided (Duplex) - Printing Paper Type
Plain, Recycled
2-Sided (Duplex) - Paper Size
Paper handling
Tray #1 - Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Tray #1 - Maximum Paper Capacity
150 sheets (80 gsm, plain paper)
Multi-purpose Tray - Paper Type
Plain, Inkjet, Glossy(cast/resin), Recycled
Multi-purpose Tray - Maximum Paper Capacity
80 sheets (80 gsm, plain paper)
20 sheets (220 gsm, glossy paper)
Automatic Document Feeder (ADF) Maximum Paper Capacity
20 pages (80 gsm, plain paper)
Paper Output
Up to 50 sheets (80 gsm, plain paper)
Copy
Colour/ Monochrome
Yes
Yes
Multiple Copies
Up to 99 pages
Enlarge/ Reduce
25% to 400% in increments of 1%
Resolution
Print: Max. 1200x2400 dpi, Scan: Max. 1200x600 dpi
Scan
Resolution - Interpolated
Up to 19200x19200 dpi with Scanner Utility (For Window 7/8/10 only)
Resolution - Scanner Glass
Up to 1,200 dpi x 2,400 dpi
Resolution - Automatic Document Feeder (ADF)
Up to 1,200 dpi x 600 dpi
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)
Network
Wireless Network Security
SSID (32 characters), WEP 64/128bit, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
1 Line
Memory Capacity
128MB
Operation
Power Source
AC 220 - 240V 50/60Hz
Power Consumption - Ready
Approx. 3W
Power Consumption - Sleep
Approx. 0.9W
Power Consumption - Power Off
Approx. 0.2W
Noise Level
Approx 53.5dB (A)
Supported Operating Systems
Supported OS
Windows® 7 SP1/8.1/10 Server 2008/2008 R2/2012/2012 R2/2016/2019
macOS v10.13.6/10.14.x/10.15.x
(For printing and scanning from Mac, use AirPrint or download iPrint&Scan from Mac App Store. Mac driver is not provided.)
