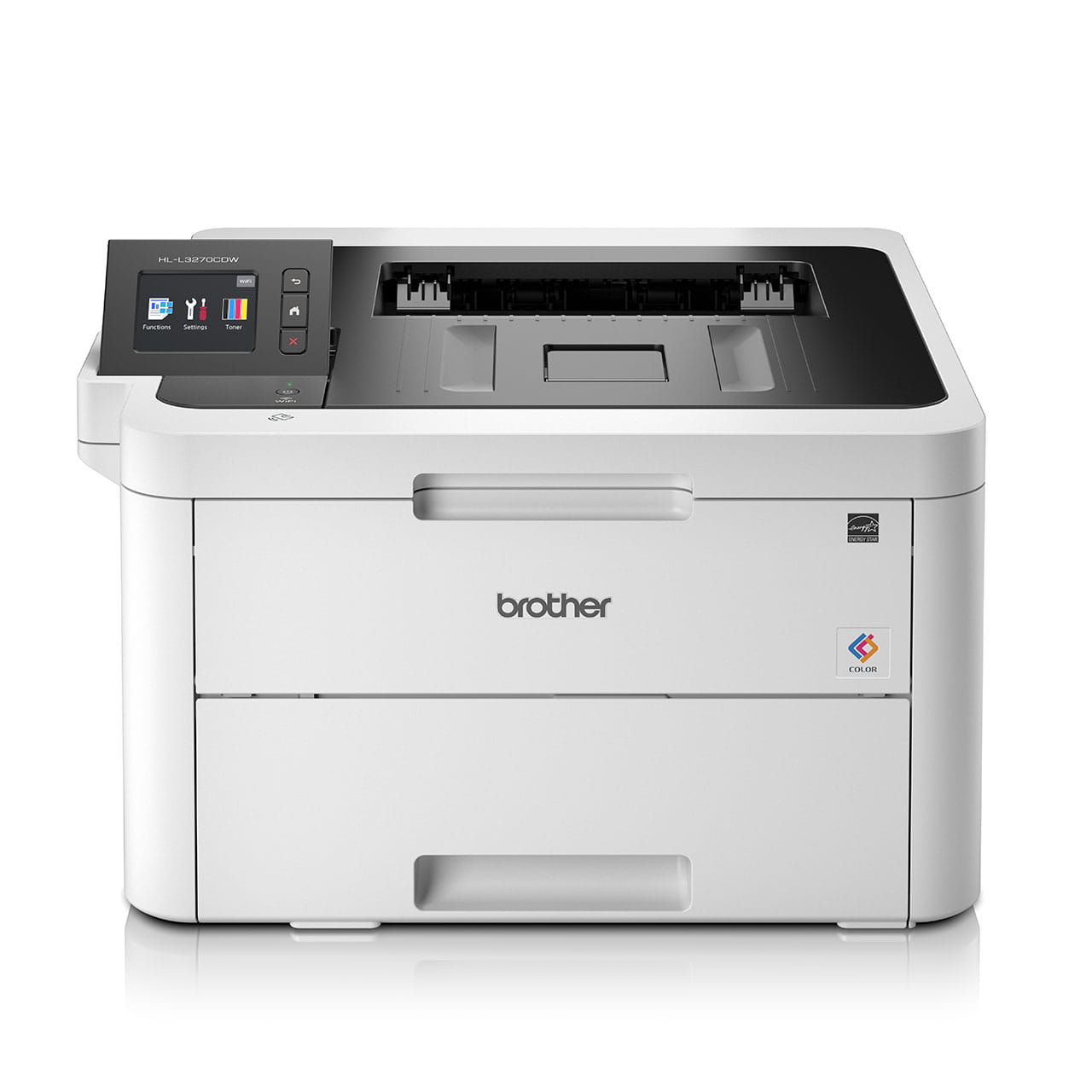

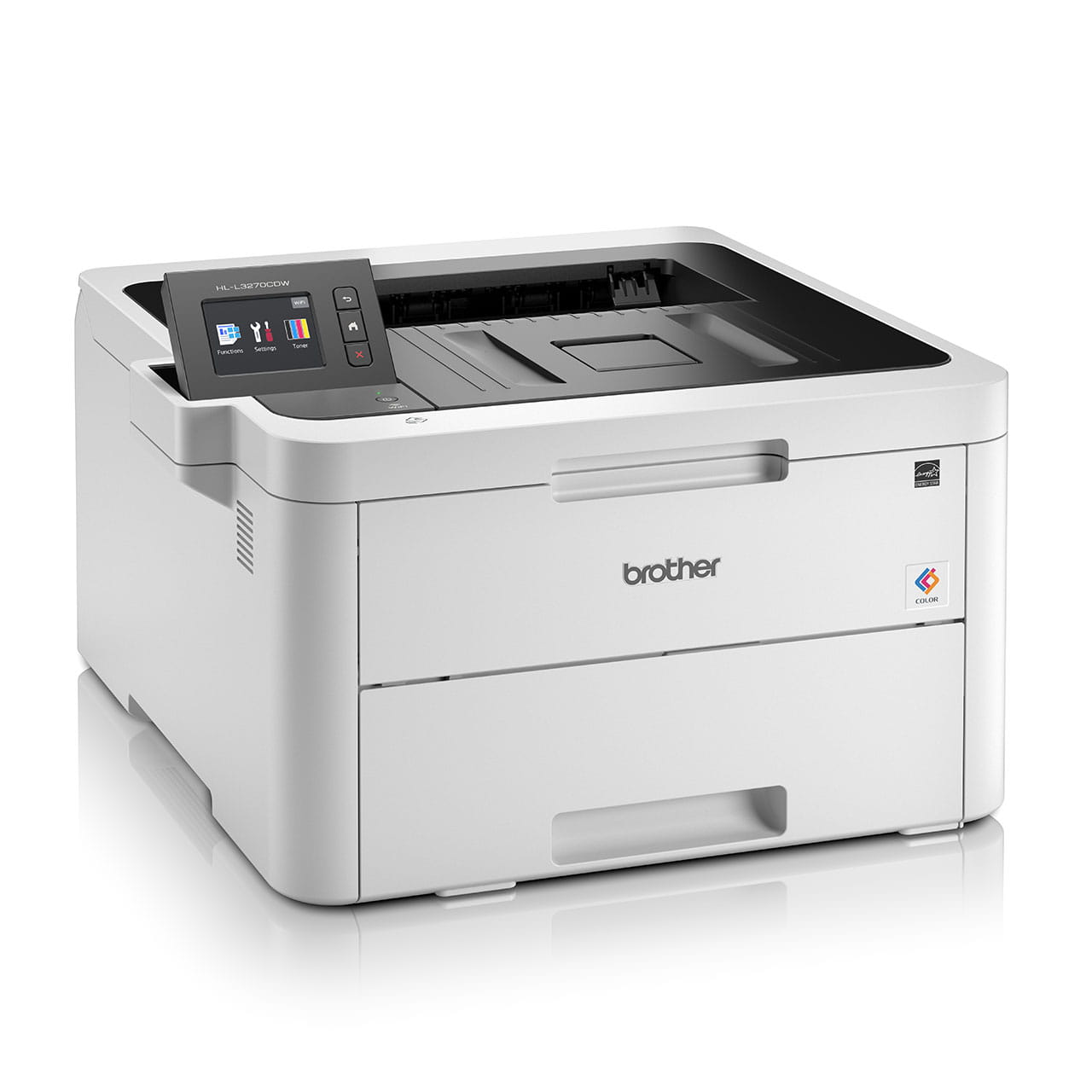

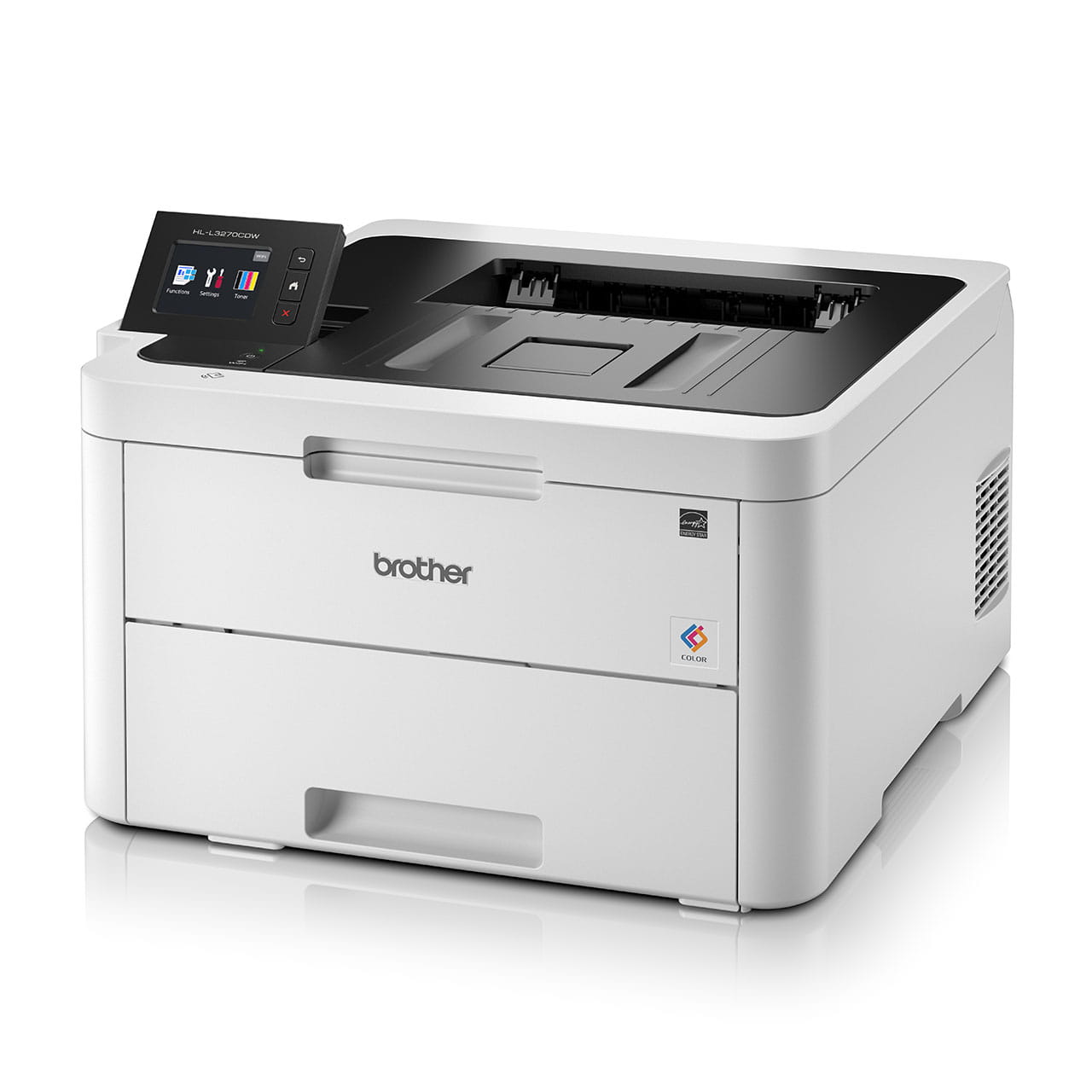

HL-L3270CDW : Wireless Colour LED Printer, Duplex NFC Mobile Print
Colour LED Printer with Wireless & Network Connectivity, Automatic 2-sided Colour Print, High Productivity with Fast Print Speeds, Wi-Fi Direct, NFC & Mobile Print, Low Cost Quality Print Resolution with Affordable Toner
- Up to 24/25 ppm (A4/LTR)
- Wireless
- Auto 2-sided printing
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Color LED Printer
Product Dimensions (Width X Depth X Height)
439 mm × 461 mm × 252 mm
Weight
18.5 kg
Print Speed
Up to 24/25 ppm (A4/LTR)
Paper Size
A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal
Maximum Paper Capacity
Max. 250 sheets (80 gsm)
Warranty
1 Year Carry in Warranty
Resolution
600 x 600 dpi, 2,400 dpi (600 x 2400) quality
2-Sided (Duplex) - Paper Size
A4
Paper handling
Tray #1 - Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper
Tray #1 - Maximum Paper Capacity
Max. 250 sheets, 80 gsm plain paper
Manual Feed Slot - Paper Type
60 to 163g/m2
Manual Feed Slot - Maximum Paper Capacity
1 sheet
Paper Output
Max. 150 sheets Face Down
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, Wireless LAN IEEE 802.11b/g/n, IEEE 802.11g/n (Wi-Fi Direct), NFC
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
2.7" TFT colour touchscreen LCD
Memory Capacity
256 MB
Operation
Power Source
220V to 240V AC 50/60Hz
Power Consumption - Ready
Approx. 65 W
Power Consumption - Sleep
Approx. 9.1 W
Power Consumption - Power Off
Approx. 0.04 W
Noise Level
Max. 47 dB(A)
Supported Operating Systems
Supported OS
Windows® Server 2008, Server 2008 R2, 7 SP1, 8, 8.1, Server 2012, Server 2012 R2, 10, Server 2016
Mac OS v10.11.6/10.12.x/10.13.x
CUPS, LPD/LPRng (x86/x64 environment)
