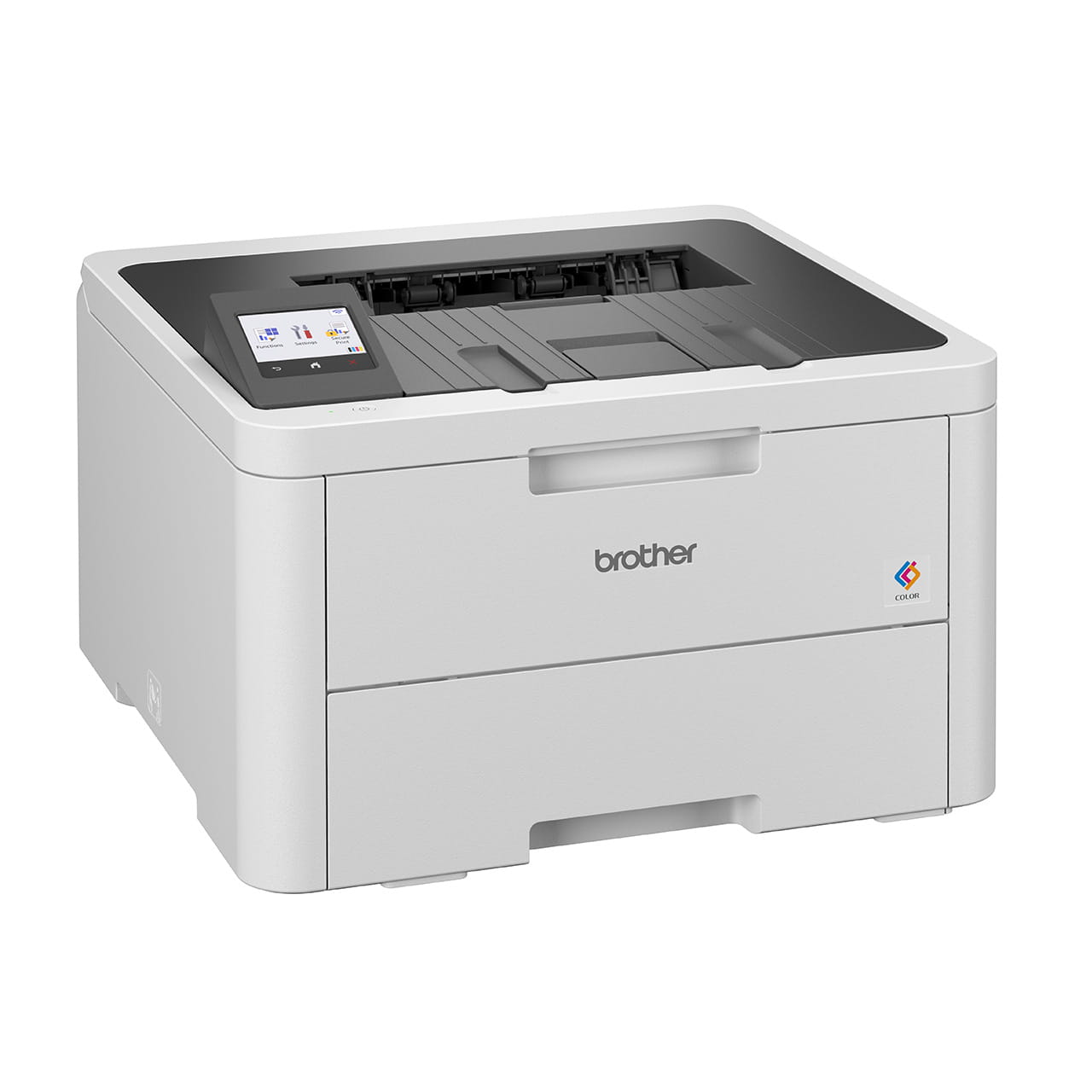

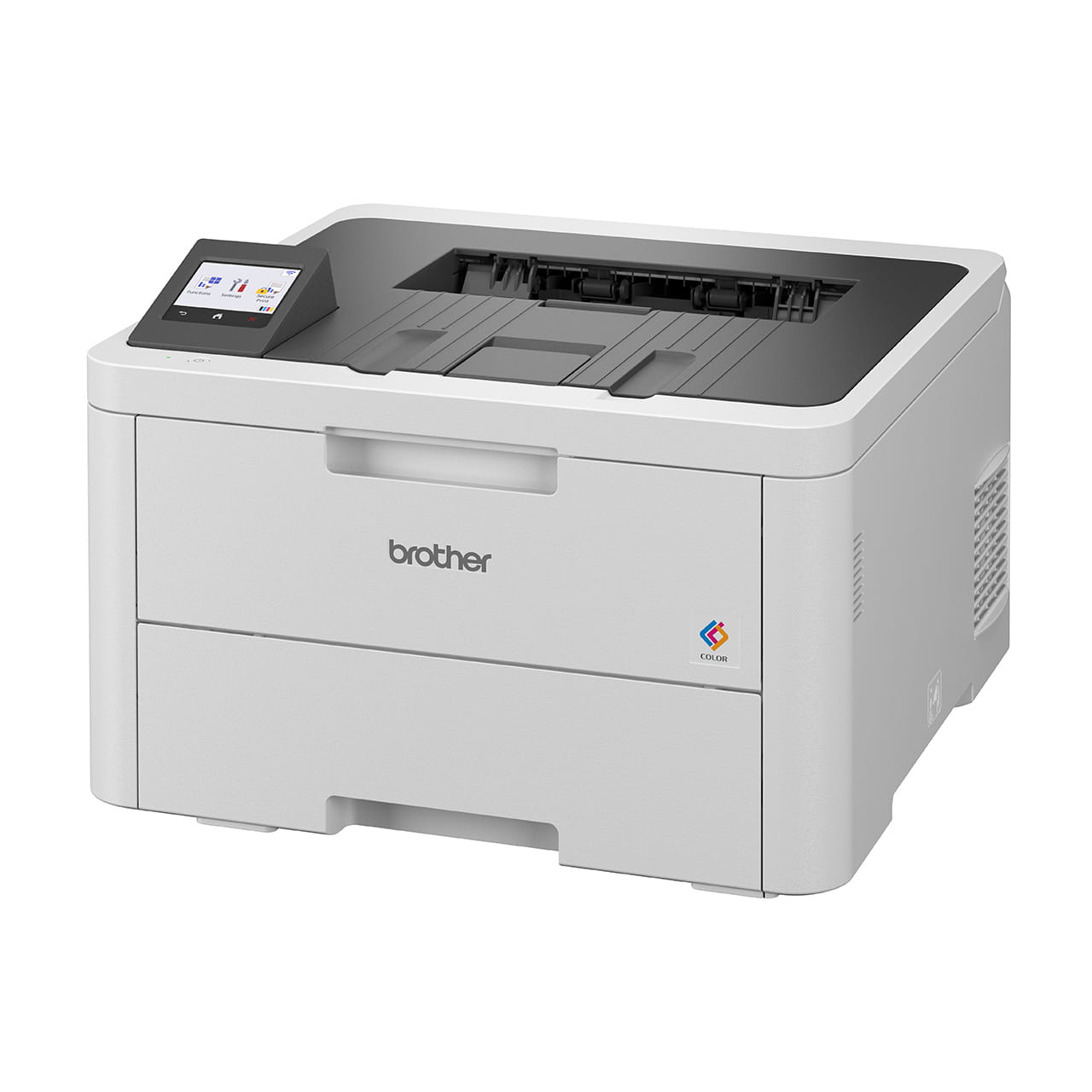

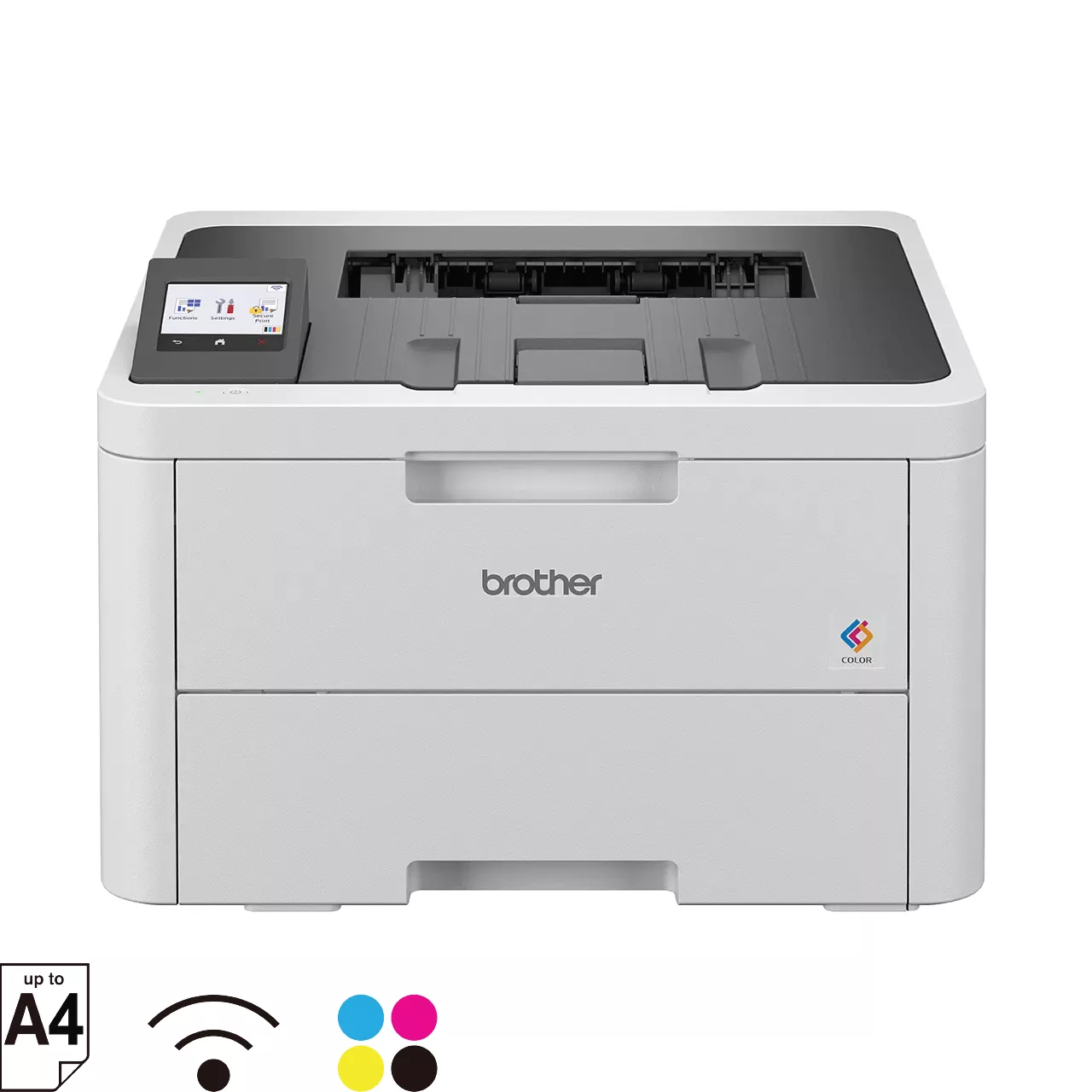

Compact Colour Laser LED Printer
- A4 print speed up to 26 ppm (Black/Colour)
- WiFi, AirPrint, Mopria, WiFi Direct, LAN, USB 2.0
- Auto 2-sided (Duplex) printing, 2.7” Colour LCD touchscreen
- Full capacity toner included. Yield up to 1000/1000 pages (black/colour)*
- Compatible with Mobile Connect app
Information
Overview
Specifications
Basic Specs
Functions
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
399 mm × 399 mm × 274 mm
Weight
11.4 kg
Print Speed
Up to 26 (Mono) / Up to 26 (Colour) ppm (A4)
Up to 27 (Mono) / Up to 27 (Colour) ppm (Letter)
Paper Type
Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
Paper Size
A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch
Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Resolution
600 x 600 dpi, 2,400 dpi class (600 x 2400) quality
2-Sided (Duplex) - Printing Paper Type
Plain Paper, Thin Paper, Recycled Paper
2-Sided (Duplex) - Paper Size
Letter, Legal, Folio, Mexico Legal, India Legal (For Philippines)
A4 (Except for Philippines)
Paper handling
Tray #1 - Maximum Paper Capacity
Up to 250 sheets of 80 gsm plain paper
Manual Feed Slot - Maximum Paper Capacity
Up to 1 sheet
Paper Output
Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)
Connectivity
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX/1000Base-T, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility - WPS
Yes
Display & Memory
Display Type
6.8 cm (2.7") Colour Touchscreen LCD
Memory Capacity
256 MB
Operation
Power Source
220 - 240 V AC 50/60Hz
(Taiwan: 110-120V AC 50/60 Hz)
Power Consumption - Ready
Approximately 70 W
Power Consumption - Sleep
Approximately 10 W
Power Consumption - Power Off
Approximately 0.04 W
Noise Level
47 dB(A)
Supported Operating Systems
Supported OS
Windows® Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11
